Hydraulic Butt Fusion Machine WP160A PRO

Request a Quote

Website: https://pipe-weldingmachine.com/1-1-3-1-hydraulic-butt-fusion-machine.html

40–160mm Plastic Pipe Welding

Video

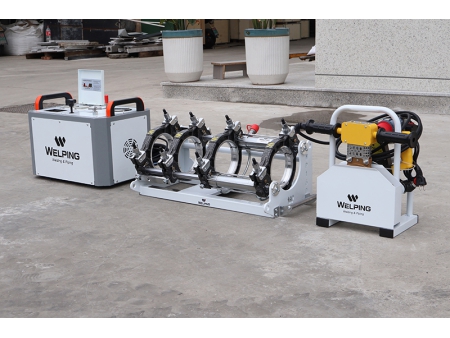

WP160A PRO is a hydraulic butt fusion machine designed for plastic pipe welding from 40 mm to 160 mm. It is easy to operate, combining a reinforced heavy-duty four-clamp frame, efficient heating plate, high-output electric facer, and practical tool holder to deliver reliable alignment and consistent fusion performance on site. The butt fusion machine is suitable for PE, PP, PVDF, and MPP pipes and fittings, providing a dependable solution for small-diameter pipe welding.

Specifications

Model	WP160A Pro
Weldable material	PE (HDPE, MDPE, LDPE), PP, PVDF, MPP
Welding range	40-160 mm
Applicable pipe diameters	40-50-63-75-90-110-125-140-160 mm
Power supply	220V, 50/60Hz, 1PH
Total power	3.65 kW
Heating plate	1.5 KW
Facer	1.4 kW
Hydraulic unit	0.75 kW
Pressure adjusting range	0-8 MPa
Max. temperature	270℃
Temperature deviation	±5℃
Piston area	15.32 cm²

Detail Highlights

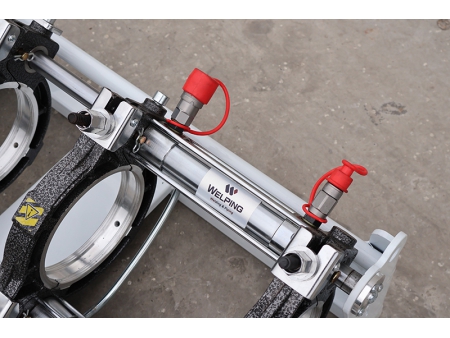

1. Frame Four-clamp frame for accurate pipe positioning
1. DynaFX™ Hydraulic Power Unit All-in-one hydraulic and electrical control panel for easy setups and operations
1. Heating Plate Stable heating for consistent fusion performance
1. Facer (Milling Cutter) Electric facer for clean, accurate pipe end preparation
1. Tool Holder Convenient holder for the heating plate and facer to enhance heat retention and improve mobility
