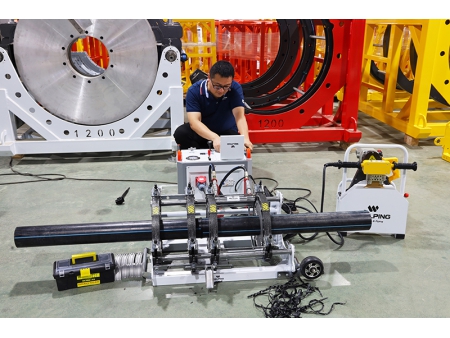

Hydraulic Butt Fusion Machine WP250A PRO

Request a Quote

Website: https://pipe-weldingmachine.com/1-1-3-3-hydraulic-butt-fusion-machine.html

63–250mm Plastic Pipe Welding

Video

WP250A PRO is a hydraulic butt fusion machine designed for plastic pipe welding from 90 mm to 250 mm. Equipped with an easy-to-operate hydraulic power unit and built with fully welded steel construction for reliable field performance.
The butt fusion machine combines a four-clamp frame, temperature-controlled heating plate, electric facer, and tool holder to support accurate pipe alignment and consistent fusion quality. The fusion machine is suitable for PE, PP, PVDF, and MPP material fusion, where stable and efficient welding is required.

Specifications

Model	WP250A Pro
Weldable material	PE (HDPE, MDPE, LDPE), PP, PVDF, MPP
Welding range	63-250 mm
Applicable pipe diameters	63-75-90-110-125-140-160-180-200-225-250 mm
Power supply	220V, 50Hz, 1PH
Total power	5.05 kW
Heating plate	2.3 kW
Facer	2.0 kW
Hydraulic unit	0.75 kW
Pressure adjusting range	0-8 MPa
Max. temperature	270℃
Temperature deviation	±5℃
Piston area	11 cm²

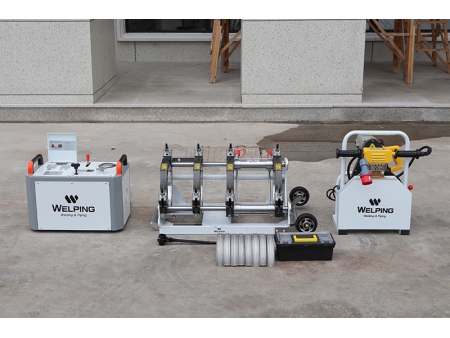

Detail Highlights

1. Frame Four-clamp frame for accurate pipe positioning
1. DynaFX™ Hydraulic Power Unit All-in-one hydraulic and electrical control panel for easy setups and operations
1. Heating Plate Stable heating for consistent fusion performance
1. Facer (Milling Cutter) Electric facer for clean, accurate pipe end preparation
1. Tool Holder Convenient holder for the heating plate and facer to enhance heat retention and improve mobility
