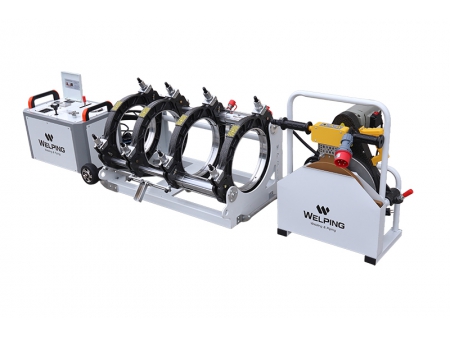

Hydraulic Butt Fusion Machine WP315A PRO

Request a Quote

Website: https://pipe-weldingmachine.com/1-1-3-4-hydraulic-butt-fusion-machine.html

90–315mm Plastic Pipe Welding

WP315A PRO is a hydraulic butt fusion machine designed for plastic pipe welding from 90 mm to 315 mm. It is suitable for medium-diameter PE, PP, PVDF, and MPP pipe applications. With its easy-to-use hydraulic power unit, reinforced four-clamp frame, advanced heating plate, accurate electric facer, and convenient tool holder, the fusion machine delivers stable operation and reliable fusion performance.

Specifications

Model	WP315A Pro
Weldable material	PE (HDPE, MDPE, LDPE), PP, PVDF, MPP
Welding range	90-315 mm
Applicable pipe diameters	90-110-125-140-160-180-200-225-250-280-315 mm
Power supply	220V, 50Hz, 1PH
Total power	5.85 kW
Heating plate	3.1 kW
Facer	2.0 kW
Hydraulic unit	0.75 kW
Pressure adjusting range	0-8 MPa
Max. temperature	270℃
Temperature deviation	±5℃
Piston area	20.02 cm²

Detail Highlights

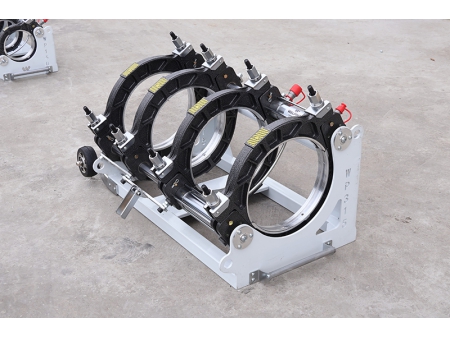

1. Frame Four-clamp frame for accurate pipe positioning
1. DynaFX™ Hydraulic Power Unit All-in-one hydraulic and electrical control panel for easy setups and operations
1. Heating Plate Stable heating for consistent fusion performance
1. Facer (Milling Cutter) Electric facer for clean, accurate pipe end preparation
1. Tool Holder Convenient holder for the heating plate and facer to enhance heat retention and improve mobility
