AC Pulse Spot Welder
- Types
- Samples
- Specifications
- Features
- Details
The AC pulse spot welder operates by utilizing standard mains electricity and employs a transformer to lower voltage while increasing current. This low-voltage, high-current output is directed to the joint of the workpieces through the electrodes. As a result of the resistance between the workpieces, high temperatures are generated, effectively heating the metal. This intense heat causes the workpiece to melt, facilitating the fusion of the workpieces together.
Various metal rods and wires, including tungsten, molybdenum, iron, nickel, carbon steel, and stainless steel.
Welding of iron wire products, hardware lighting fixtures, kitchen utensils, auto parts, metal hardware and more

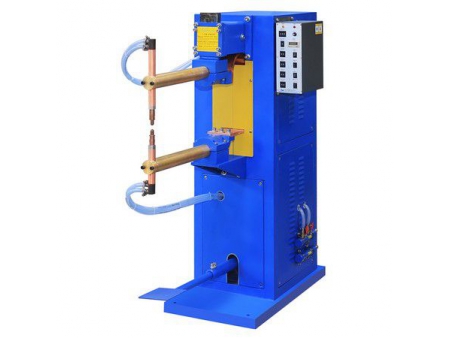

- Standard AC pulse spot welder
For spot welding of metal sheets (copper, aluminum, stainless steel, galvanized steel)

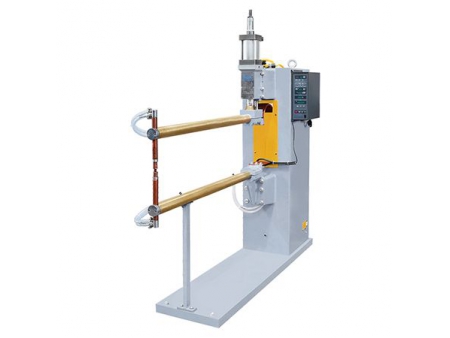

- Long arm spot welder
For welding longer sheet metal products

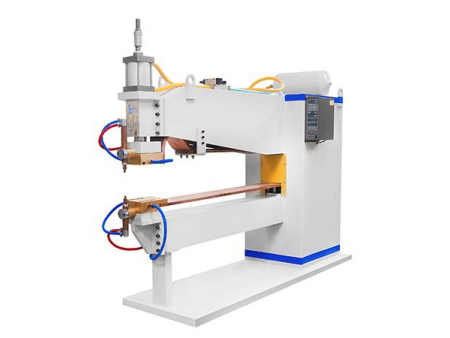

- Rocker arm spot welder
For welding longer sheet metal products

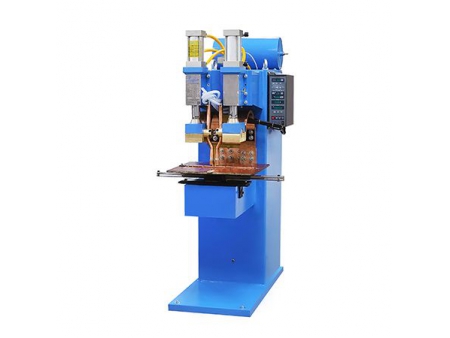

- Dual head spot welding machine
For simultaneous dual-spot welding
- AC pulse table spot welder
For welding small hardware
- Pedal operated spot welder
For spot welding of metal sheets (copper, aluminum, stainless steel, galvanized steel) controlled by foot pedal, ideal for customers with lower budgets

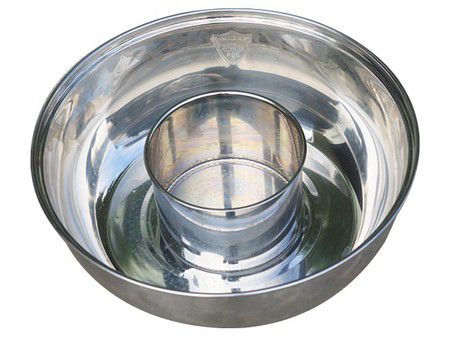

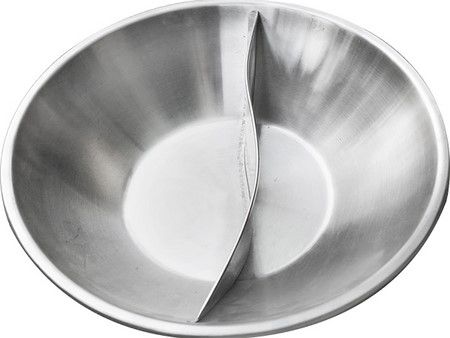

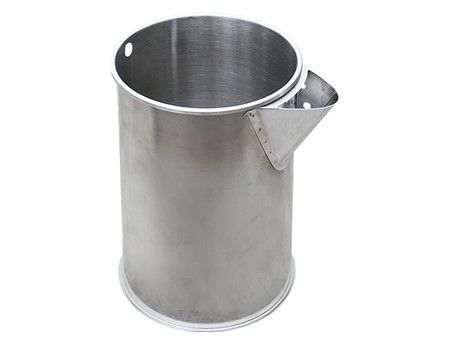

- Kitchen pots and pans welding
- Kitchen pots and pans welding
- Kitchen pots and pans welding

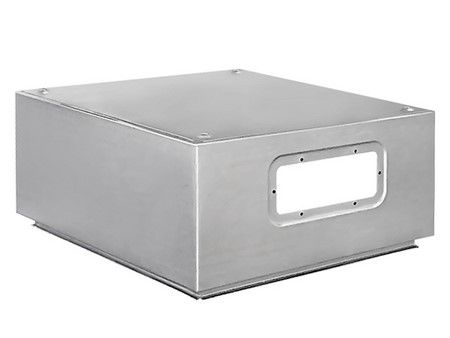

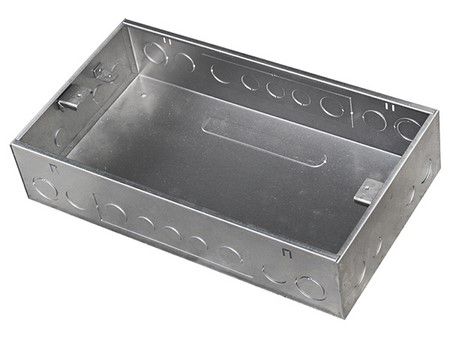

- Sheet metal cabinet welding
- Sheet metal cabinet welding

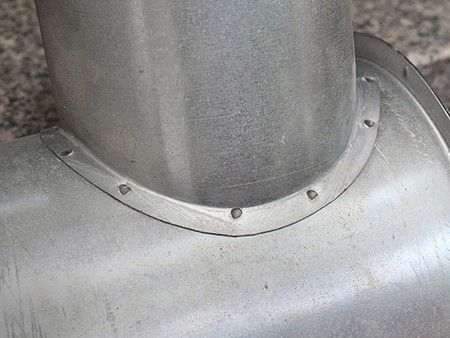

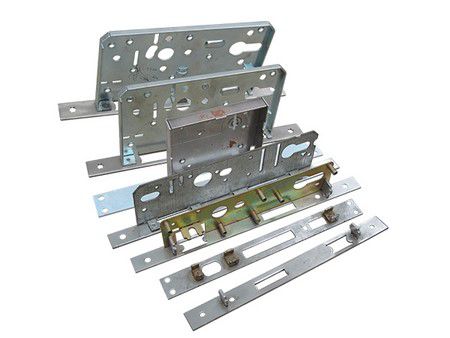

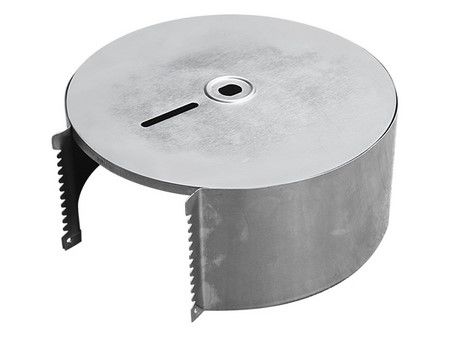

- Stainless steel welding
- Stainless steel welding
- Stainless steel welding

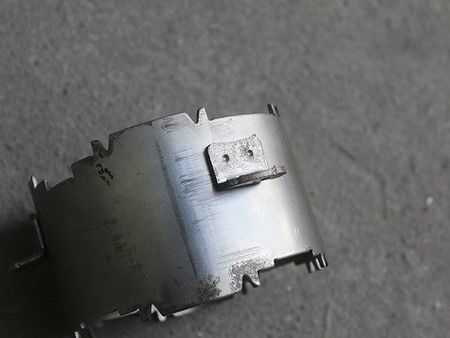

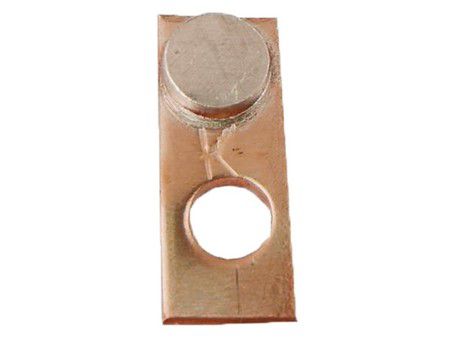

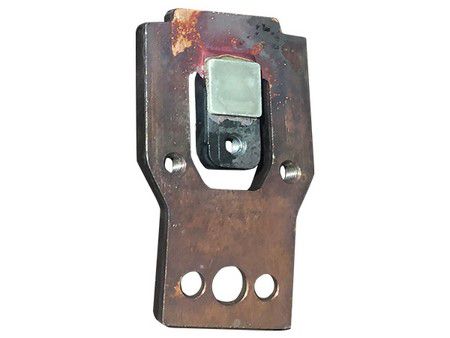

- Low-voltage electrical welding
- Low-voltage electrical welding
| Model | Input Voltage (V) | Input Power (kVA) | Output Current (A) | Pressure Force (kg) | Electrode Stroke (mm) | Closure (mm) | Platform Distance (mm) | Electrode Distance (mm) | Cooling Water (Lit/Min) |
| | 220 | 10 | 5000 | 200 | 50 | 65-115 | - | 145-165 | - |
| | 220 | 10 | 6000 | 200 | 50 | 65-115 | - | 145-165 | - |
| | 220 | 10 | 8000 | 200 | 50 | 65-115 | - | 145-165 | - |
| | 380 | 16 | 10000 | 300 | 80 | - | - | - | 6 |
| | 25 | 12000 | 300 | 80 | - | - | - | 6 | |
| | 35 | 16000 | 350 | 80 | - | - | - | 6 | |
| WL-S-50K | 50 | 19500 | 500 | 80 | - | - | - | 6 | |
| | 25 | 12000 | 300 | 80 | 145-225 | 250 | 320-420 | 6 | |
| | 50 | 16000 | 350 | 80 | 145-225 | 250 | 320-420 | 6 | |
| | 50 | 19500 | 500 | 80 | 145-225 | 250 | 320-420 | 6 | |
| | 75 | 24000 | 1000 | 100 | 130-230 | 260 | 490-540 | 8 | |
| WL-SP-100K | 100 | 34000 | 1000 | 100 | 130-230 | 260 | 490-540 | 8 | |
| | 150 | 40000 | 1000 | 100 | 130-230 | 260 | 490-540 | 8 | |
| WL-SP-200K | 200 | 50000 | 1500 | 100 | 130-230 | 260 | 490-540 | 8 |
- Sturdy body and stable welding: The machine body is designed to withstand impact, vibration, and high rigidity. It undergoes precise mechanical processing to prevent electrode sliding during pressure applying, ensuring stable welding performance.
- Smooth pressure application and fast welding speed: The integrated pressure mechanism provides excellent responsiveness, fast pressure application and a long service life.
- Energy-saving and sustained operation: The transformer, thyristor, and electrodes are equipped with a water-saving circulating cooling system, guaranteeing reliable long-term operation.
- Powerful output and uniform conductivity: The high-permeability silicon steel sheet transformer and high-power thyristor components deliver a strong power output with even conductivity.
- Intelligent control for easy operation: The microcomputer controller can store multiple welding specifications and control various output currents. It allows for easy adjustment to meet different welding requirements.
- Intelligent microcomputer controller
Optional touchscreen panel or digital button panel for setting welding parameters.
- Conductive copper tape
Thickened copper tape aims to enhance its conductivity.
- Customized electrodes
Customized electrodes (can be tailored to different materials and products)
- Customizable arm length
Arm length can be customized according to the product size.
