Request a Quote

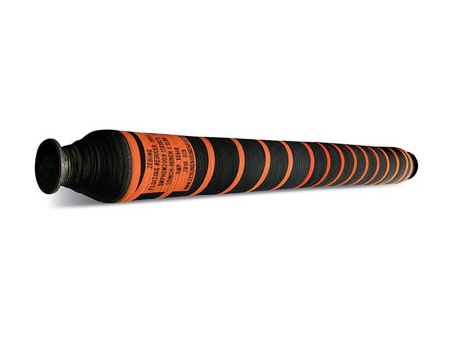

Installed on the ship's side, tanker rail floating hose is designed for connecting with pipeline end manifolds (PLEMs) of a floating production storage offloading (FPSO) unit.

Tanker Rail Floating Hose Testing
During the production, the marine floating hose can be tested according to either the GMPHOM 2009 quality standards or the standards specified by the customer, ensuring high safety and performance of marine hoses for using in the marine environment.

Features
1. Floating hoses available with single and double carcass design
2. Rated working pressure: 21 bar
3. Minimum reserve buoyancy: 20% or as requested
4. Electrical continuity: electrically discontinuous
5. The tanker rail floating hose comes with a reliable and efficient leak detection and indication system. The detector will quickly respond to the leak after detecting the damage of main carcass. In this case, the operator can remove the damaged hose in a quick manner. This greatly reduces economic loss and impact on marine environment.

Technical Parameters

Inner Diameter
mm
Weight in Air Empty
kg
Outside Diameter
mm
Min. Bending Radius
m

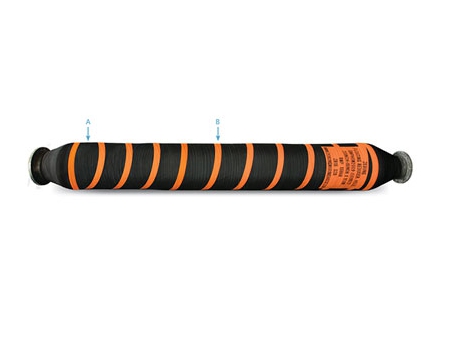

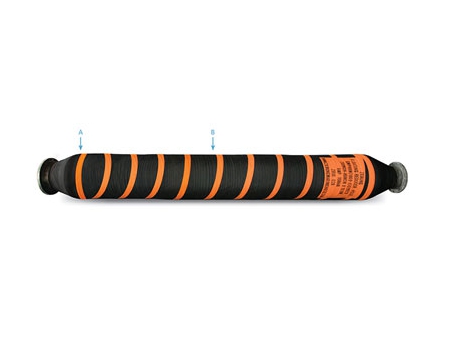

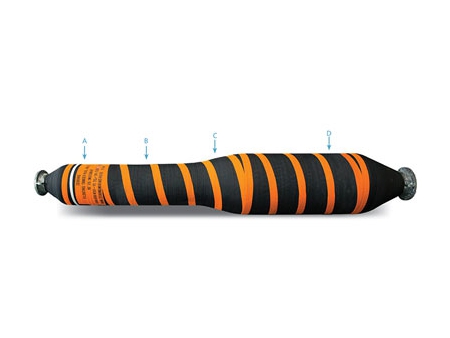

9.1m 10.7m 12.2m A B C
150(6") 524 576 628 500 290 440 0.6(2.0')
200(8") 726 817 908 560 350 530 0.8(2.7')
250(10") 931 1037 1143 690 420 530 1.0(3.3')
300(12") 1091 1225 1359 810 490 640 1.2(4.0')
400(16") 1650 1839 2028 1000 580 840 1.6(5.3')
500(20") 2200 2550 2800 1100 720 1000 2.0(6.7')

Note: Specifications can be made upon request.

Certificates

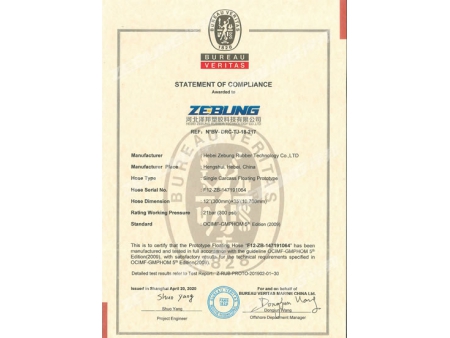

  • BV Test Report (Single Carcass Floating Prototype-DN300mm)

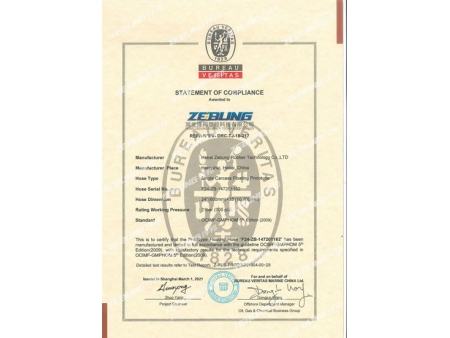

  • BV Test Report (Single Carcass Floating Prototype-DN600mm)

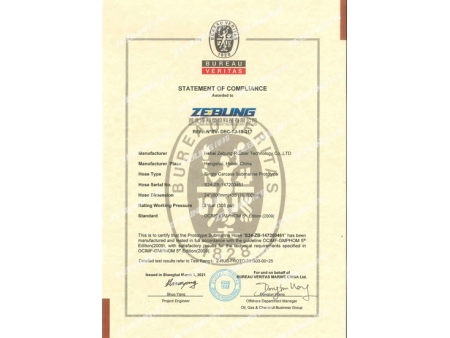

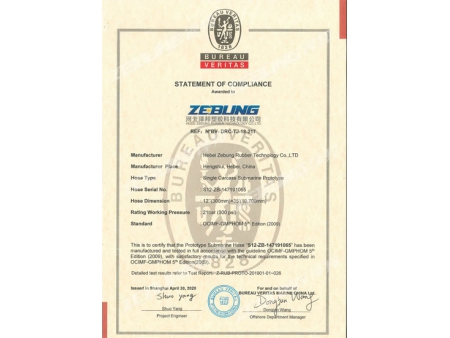

  • BV Test Report (Single Carcass Submarine Prototype-DN300mm)
  • BV Test Report (Single Carcass Submarine Prototype-DN600mm)

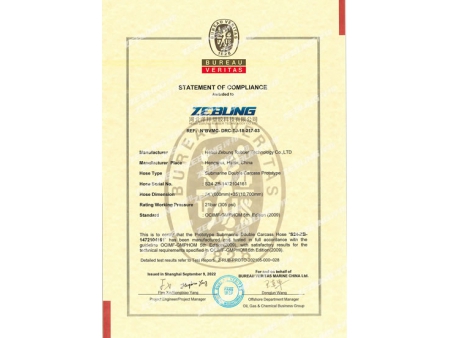

  • BV Test Report (Submarine Double Carcass Prototype-DN600mm)

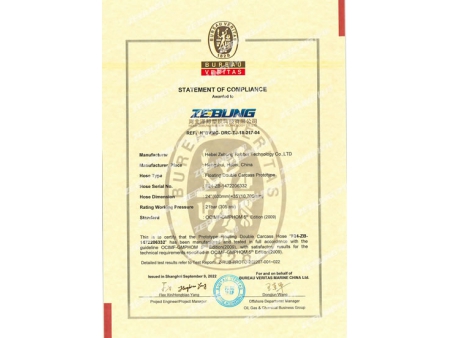

  • BV Test Report (Floating Double Carcass Prototype-DN600mm)
