Modified Epoxy Anchoring Adhesive, MT-T100
Structural Adhesives
Bulk construction adhesives for anchoring threaded rod, bolts and rebar dowels into concrete
The modified epoxy anchoring adhesive is a chemically reactive, high-performance bulk bonding system, designed for use in large-scale rebar anchoring and dowel installation. Supplied in pail form for on-site mixing, the adhesive features a smooth, workable consistency that allows for easy blending and application.
Its high thixotropy ensures strong adhesion without sagging, while its fast curing and cost-effective formulation make it ideal for use in rebar anchoring, bolt planting, and dowel bar installation across a wide range of substrates. The adhesive is well-suited for foundation reinforcement, infrastructure retrofitting, and anchoring projects requiring bulk application and reliable mechanical performance.
Certifications & Standards
Complies with GB 50728-2011 (Technical Code for Safety of Anchorage Adhesives for Construction) and GB 50367-2013 (Code for Design of Reinforcement Anchoring for Concrete Structures)
| Property | Standard Requirement (Grade A) | Test Result | |
| Splitting tensile strength (MPa) | ≥8.5MPa | 13.51MPa | |
| Bending strength | ≥50MPa,and not in fracture damage form | 73.6MPa,and not in fracture damage form | |
| Compressive strength | ≥60MPa | 81.9MPa | |
| Steel-to-steel tensile shear strength | ≥10MPa | 15.9MPa | |
| Steel-to-steel T impact peeling length | ≤5mm | 0mm | |
| Bonding strength of concrete and ribbed steel bars under the constraint drawing condition | C30 | ≥11.0MPa | 21.3MPa |
| C60 | ≥17.0MPa | 26.8MPa | |
| Heat distortion temperature | ≥65℃ | 78.0℃ | |
| Temperature | Installation Time | Gelling Time | Full Curing Time |
| -5℃~0℃ | 30min | 80~150min | 10D |
| 0℃~10℃ | 20min | 50~80min | 7D |
| 10℃~25℃ | 10min | 30~50min | 5D |
| 25℃~40℃ | 5min | 10~30min | 3D |
| ≥40℃ | 3min | 5min | 1D |
- Post-installed rebar anchoring in concrete columns
- Reinforcement and reconstruction of bridges and roadways
- Structural connections in tunnel engineering
- Repair and strengthening of bridge piers and marine structures
- Delivers high anchoring strength, with splitting tensile strength up to 13.5 MPa, often exceeding the surrounding concrete after curing
- Excellent thermal aging and seismic resistance, with proven performance and a 50-year durability warranty
- High flexural strength, reaching up to 73.6 MPa, offering superior toughness and crack resistance
- Versatile bonding performance across multiple substrates, with strong adhesion to most structural materials
- Can be mixed and applied on-site, or used with injection equipment for efficient, waste-reducing installation

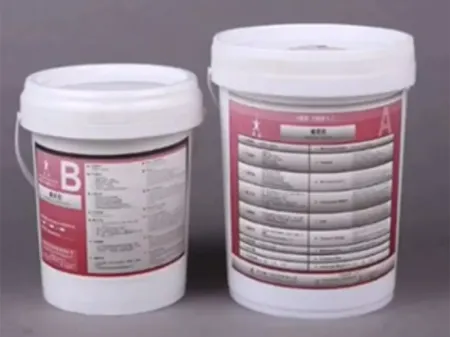

- Packaging specification: 10 kg per set
- Gross weight: Approx. 14.0 kg (Part A) and 21.5 kg (Part B)
- Carton dimensions:
Part A: 440 mm×235 mm×232 mm (L×W×H) Part B: 550 mm×380 mm×200 mm (L×W×H)
