FANTASY Portable X-Ray Machine

Request a Quote

View All: http://medimaging-en.com/1-1-9-fantasy-portable-x-ray-machine.html

SHO-PXF Medical Imaging

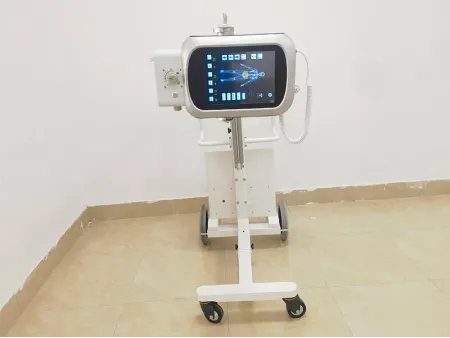

Portable digital radiography unit with laser collimator and luxury mobile trolley

Designed for spinal and abdominal imaging, the FANTASY portable X-ray machine offers 8kW and 10kW power options. With a built-in laser collimator, it delivers exceptional image clarity, making it particularly effective for lumbar spine, abdomen, and other dense areas, even for patients over 200 kg.

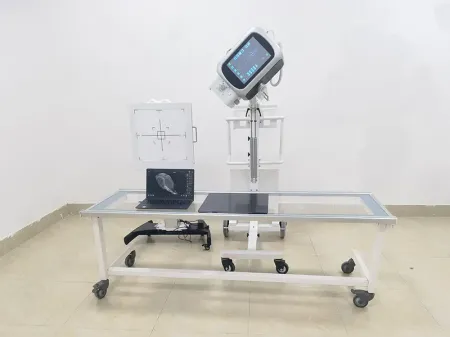

For ease of use and efficiency, this portable X-ray machine features a 10.4-inch color touchscreen, an adjustable trolley, and multiple exposure control options, including a wired hand switch, wireless remote, and on-screen exposure button. Additionally, it includes a 17-inch × 17-inch wired flat panel detector and a 15.6-inch Dell laptop, ensuring a smooth and efficient workflow.

Specifications

Model	SHO-PXF01	SHO-PXF02
Power (kW)	8 (with battery)	10 (with battery)
High voltage Generator
kV Range (kV)	40-125	40-125
mAs range (mAs)	0.1-200	0.1-200
mA range (mA)	20-100	10-100
Working frequency (kHz)	≥40
Communication mode	RS232
Exposure time (s)	0.01-4
Exposure mode	Hand brake, wireless hand remote controller, touch screen button
X-ray tube
Anode heat storage (kHU)	56
Focal spot (mm)	1.8
Anode Angle (°C)	15
Collimator
Power supply	AC/DC 24 V±10%
Light type	Laser collimator
Light delay time (s)	30±2
Illumination	≥160Lux
Inherent filtration	1.2mmAL@75 kV
Dimension
Head screen	10.4-inch LCD color touch screen
Trolley height adjustable range	515-1810 mm (from spot to floor)

Flat panel detector

Model: Venu1717X (Iray brand)
Dimension (L×W×H): 460×460×15mm
X-ray Energy: 40-150kV
Scintillator: CsI:Tl
Pixel Size: 139um
Fill Factor: 70%
Effective Array: 3072×3072
Effective Area (H×V): 427×427mm
Spatial Resolution: Min. 3.4 lp/mm
Image Transfer: Gigabit Ethernet

Working station (Console)

Brand: Dell
Model: Vos15-3520
Processor: Smart Intel ® Core ™ i5-1135
Operating system: Windows 11 Home
Graphics Card: Intel ® UHD graphics
Card Memory: 32 GB DDR4
Storage: 512 GB SSD
Display size 15.6-inch screen Full HD (1920×1080)
Net weight: 1.69kg
Thickness: 16.96mm

X-Ray Imaging

Chest radiograph

Limb radiograph

Veterinary radiograph

Abdominal radiograph

Spinal radiograph

Applications

The following are the diverse applications of the FANTASY portable X-ray machine across various medical and veterinary fields:

Emergency room
Orthopedics
Physical examination
Field training
Operating room
ICU
Ambulance
Animal husbandry
Sports medicine
Nursing home
Rural medical visits
Pet hospital

Need a high-power portable X-ray machine for advanced imaging? Contact us today for more details!
