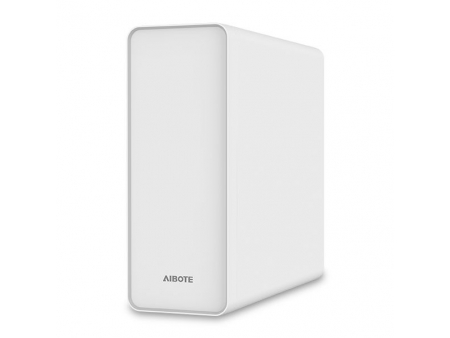

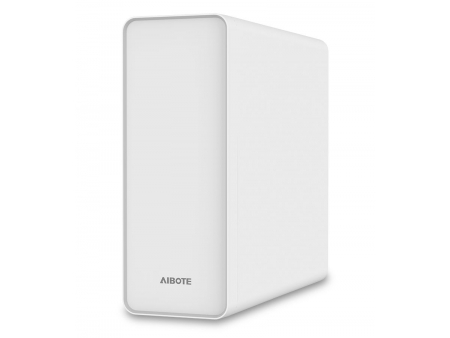

Mini Tankless Under Sink RO Water Filter System
Request a Quote
Reverse osmosis system for drinking water purification
- Filtration System PCR filter: PP carbon;
RO filter - Purified/Drain Ratio 2:1 pure to drain
- Customizable FunctionsFaucet style
Various purified water flow (400 GPD-600 GPD) - Features High flow with tankless and slim design
High filtered water yield
Integrated water manifold module, high-quality assurance
Intelligent control: auto flushing, filter life indication, fault alert
Composite filter development, reducing cost and facilitating filter replacement
Long service lifespan of RO filter, significantly reducing the cost of use
Low operating noise (less than 55dBA) - Optional Faucet Types Single-handle faucet
Double-handle faucet
LED ring faucet
Smart display faucet
Mini RO water filter system is sometimes called compact undersink RO water filtration system since it is small in size and more affordable in comparison to other types of undersink water filters used in kitchen. With a filter element configuration of PPC RO, this mini RO water filter system can work with single-handle faucet or single-handle smart display faucet to deliver purified water, with a flow rate ranging from 400 to 600 GPD.
Model Options
- Model AW-RL01
- Mini RO Water Purifier (tankless reverse osmosis system)
- Model AW-RL02
- Mini RO Water Purifier (tankless reverse osmosis system)
Specifications
| RO flow available | ||
| Power | 60W | 80W |
| Voltage | 24V | 24V |
| Purified water flow rate | 1.04L/min | 1.56L/min |
| RO permeate: drain | 2:1 | |
| Filtration stages | 3 | |
| First filter service life | PPC (PP cotton carbon)/9-15months | |
| second filter service life | RO (Reverse Osmosis)/30-48months | |
| Min. input water pressure | 0.1Mpa | |
| Max. input water pressure | 0.4Mpa | |
| Working pressure | 0.4-0.8MPa | |
| Inlet water quality | Municipal water | |
| Inlet water temperature | 5-38℃ | |
| Water output capacity | Single outlet: 6000L | |
| Ambient temperature | 4-40℃ | |
| Installation | Under the sink | |
| Gross weight | 10.5kg | |
| Product size | 347*120*310mm | |
| Carton size | 695*192*465mm | |
| Container (20FT/40GQ/40HQ) | 510pcs/1035pcs/1178pcs | |
Details

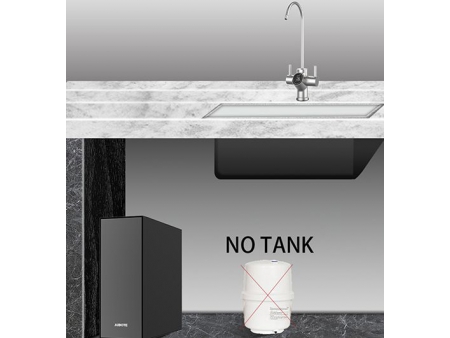

Compact and tankless design preserves enough under-sink storage space for other items.

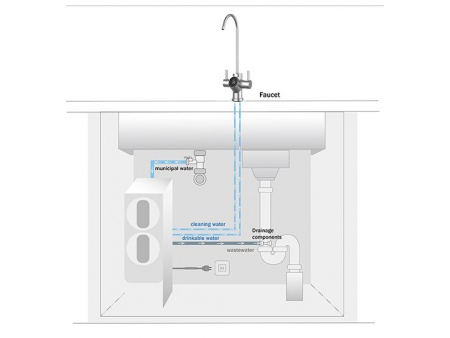

Easy installation, DIY filter replacement

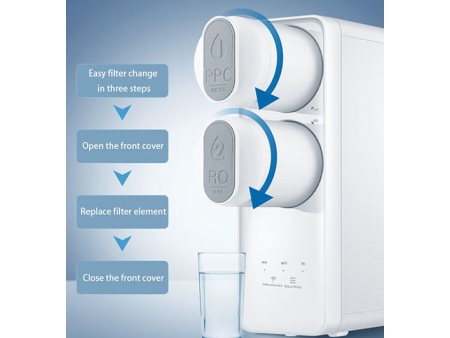

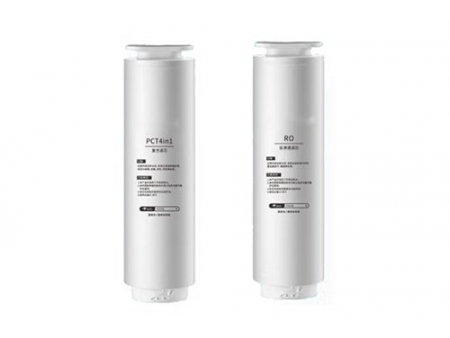

Easy replacement of filter cartridge

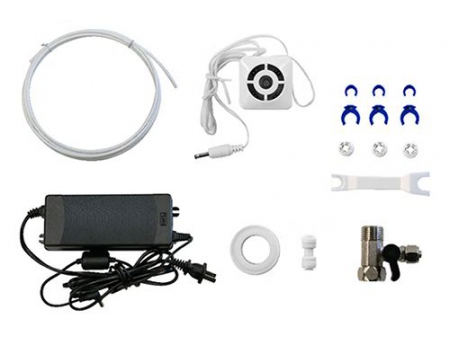

Accessories

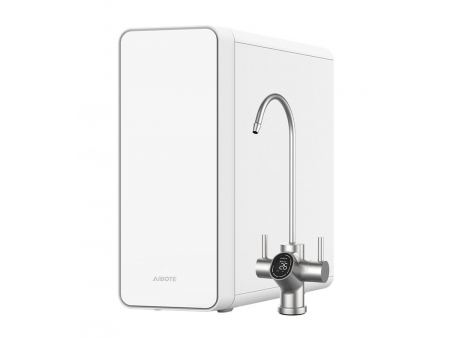

Related products
