Automatic Sachet Cartoning Machine
Request a Quote
KXH-130

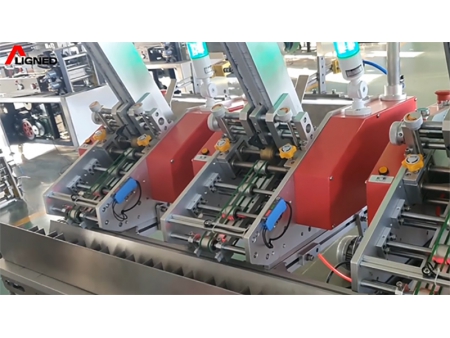

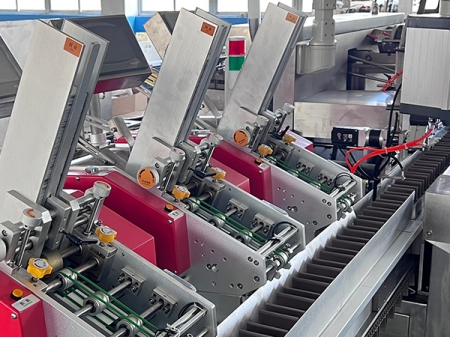

The automatic sachet cartoning machine integrates electrical and pneumatic functions for efficient carton forming, folding, and sealing. It has been designed to meet the diverse packaging needs of sachets, pouches, bottles, and tubes in a variety of industries, including healthcare, chemical, and other sectors. It offers flexible options based on the specific product and client requirements.
Technical Specifications
| Cartoning Speed | 80-120 boxes/min | |
| Box | Quality Requirement | 250-350g/m² [ Base on carton size ] |
| Dimension Range (L×W×H) | (70-180)×(35-80)×(15-50)mm | |
| Leaflet | Quality Requirement | 60-70g/m² |
| Unfolded Leaflet Size (L×W) | (80-250)×(90-170)mm | |
| Fold Range (L×W) | 1-4 fold | |
| Compressed Air | Working Pressure | ≥0.6MPa |
| Air Consumption | 120-160 L/min | |
| Power Supply | 220V 50HZ | |
| Main Motor Power | 1.1kW | |
| Machine Dimension (L×W×H) | Approxi. 3100×1100×1550mm | |
| Machine Weight | Approxi. 1400kg | |
Features
- Specifically engineered for efficient small sachet packing.
- Customizable packing options—5, 10, 30, or other custom quantities per carton.
- Easily switch cartons without the need for additional tools.
- Automatic code printing and sealing on both ends of the carton.
- Independent PLC with a user-friendly HMI touchscreen; electrical components primarily from Siemens and SMC.
- All moving parts are securely enclosed, featuring an automatic shutdown mechanism.
- It has a product detection sensor that ensures that only cartons with products are packed.
- Designed with a compact and efficient structure, fully compliant with GMP standards.
- Equipped with high-dynamic servo drive for versatile applications.
- Clear layout and simple operation.
- Offers a gluing option for secure carton sealing.
