Automatic Gusset Bag Fill-Seal Machine, YL-8GT

Automatic Gusset Bag Fill-Seal Machine, YL-8GT
Automatic Gusset Bag Fill-Seal Machine, YL-8GT
Automatic Gusset Bag Fill-Seal Machine, YL-8GT
Request a Quote

Premade Pouch Filling Sealing

Pouch Style

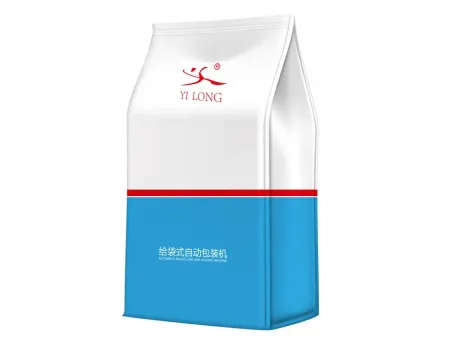

Gusset Bag

We offer robust and advanced rotary premade pouch machine engineered for gusset bags. Constructed from stainless steel or powder-coated machine body, with all product contact parts made of advanced stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver outstanding corrosion resistance and a long service life. The gusset pouch packaging equipment can be integrated with various automatic weighers, dispensers and elevators. To meet specific operational requirements, it supports advanced modules such as safety door emergency stop, automatic card dispensing, and rejection of non-conforming products. The entire process is fully automated, significantly boosting production throughput while minimizing labor and overhead expenses.

Leave a Message

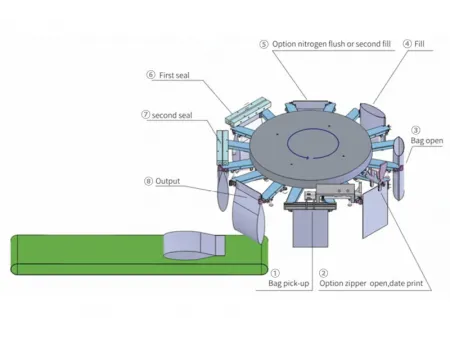

Working Process
  • Bag feeding (giving bag)
  • Zipper opening & date coding (optional)
  • Pouch opening (top & bottom opening)
  • Product filling
  • Pouch cleaning & second filling (optional)
  • First heat sealing
  • Second heat sealing & cooling/forming
  • Discharge / finished product output
Specifications
Capacity(pouches/min) 15-50 15-45
Pouch size Length: 100-300mm
Width: 80-130mm
Length: 100-350mm
Width: 130-180mm
Packing weight Max. weight 1kg Max. weight 1kg
Sealing method Heat seal Heat seal
Power consumption 4kW 4kW
Power supply 3-phase 380V 50Hz 3-phase 380V 50Hz
Compressed air 6-8kgf/cm² 0.8m³/min 6-8kgf/cm² 0.8m³/min
Machine weight 1900kg 3500kg
Pouch style Gusset Bag Gusset Bag
Machine dimensions Length: 2950mm
Width: 1810mm
Height: 1520mm
Length: 3160mm
Width: 2030mm
Height: 1620mm
Features
  • Premium Materials & Hygiene Standards
    Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life.
  • User-Friendly Operation & Integration
    Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system.
  • Waste Prevention System
    The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste.
  • Superior Seal Quality
    A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings.
  • Easy Maintenance and Convenient Inspection
    The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance.
  • Minimized Material Loss
    Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
