High-Speed Pick-Fill-Seal System, YL-10ST
Request a Quote
Premade Pouch Filling and Sealing
The YL-10ST rotary premade pouch packaging machine is specifically designed for high-speed automated packaging. It offers exceptional versatility, supporting a wide range of pouch formats including 4-side seal bags, zipper pouches, and stand-up bags (Doypacks).
This automatic pouch packaging machine can integrate with auto weighing and dosing systems and various elevators/conveyors, to handle a wide variety of products. The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste.
Pouch Style

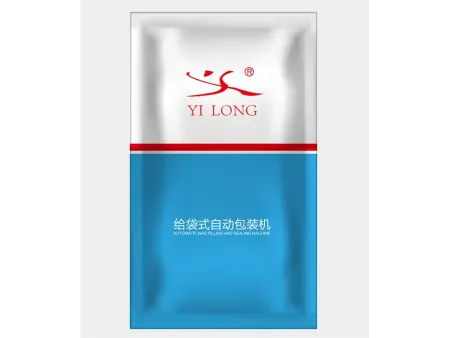

- Flat Bag

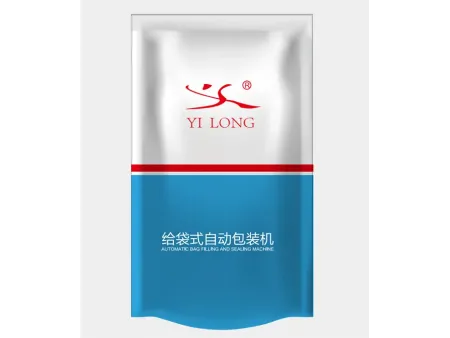

- Stand-up Bag
- Back Seal Bag
Working Process
- Bag feeding (giving bag)
- Zipper opening & date coding (optional)
- Pouch opening (top & bottom opening)
- Product filling
- Pouch cleaning & second filling (optional)
- First heat sealing
- Second heat sealing & cooling/forming
- Discharge / finished product output
Specifications
| Capacity(pouches/min) | 30-70 |
| Pouch size | Length: 100-300mm Width: 100-200mm |
| Packing weight | Max. weight 1kg |
| Sealing method | Heat seal |
| Power consumption | 3.2kW |
| Power supply | 3-phase 380V 50Hz |
| Compressed air | 6-8kgf/cm² 0.8m³/min |
| Machine weight | 1400kg |
| Pouch style | Flat Bag, Stand-up Bag, Back Seal Bag |
| Machine dimensions | Length: 2880mm Width: 1300mm Height: 1600mm |
Features
- Premium Materials & Hygiene Standards
Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life. - User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system. - Waste Prevention System
The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste. - Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings. - Easy Maintenance and Convenient Inspection
The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance. - Minimized Material Loss
Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
