Pick-Fill-Seal System for Premade Bags, YL-10SZ
Request a Quote
Premade Pouch Filler and Sealer
This rotary premade pouch packaging machine is a high-speed 10-station packaging equipment specially designed for zipper bags. Constructed from stainless steel or powder-coated machine body, with all product contact parts made of advanced stainless steel or other food-grade materials, the automatic pouch filler/sealer is designed to meet high hygienic standards and deliver outstanding corrosion resistance and a long service life. It offers exceptional versatility, allowing for seamless integration with various automatic weighers, dispensers and elevators.
Pouch Style

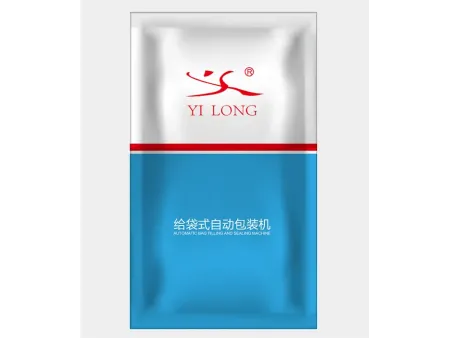

- Flat Bag

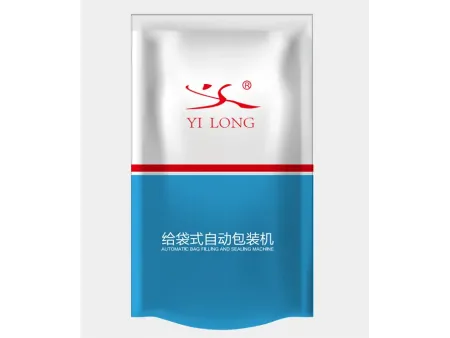

- Stand-up Bag
- Zipper Bag
- Back Seal Bag
- Flat Bottom Bag
Working Process
- Bag feeding (giving bag)
- Zipper opening & date coding (optional)
- Pouch opening (top & bottom opening)
- Product filling
- Pouch cleaning & second filling (optional)
- First heat sealing
- Second heat sealing & cooling/forming
- Discharge / finished product output
Specifications
| Capacity(pouches/min) | 30-60 |
| Pouch size | Length: 100-300mm Width: 100-200mm |
| Packing weight | Max. weight 1kg |
| Sealing method | Heat seal |
| Power consumption | 3.2kW |
| Power supply | 3-phase 380V 50Hz |
| Compressed air | 6-8kgf/cm² 0.8m³/min |
| Machine weight | 1600kg |
| Pouch style | Flat Bag, Stand-up Bag, Zipper Bag, Back Seal Bag, Flat Bottom Bag) |
| Machine dimensions | Length: 2880mm Width: 1300mm Height: 1600mm |
Features
- Premium Materials & Hygiene Standards
Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life. - User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system. - Waste Prevention System
The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste. - Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings. - Easy Maintenance and Convenient Inspection
The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance. - Minimized Material Loss
Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
