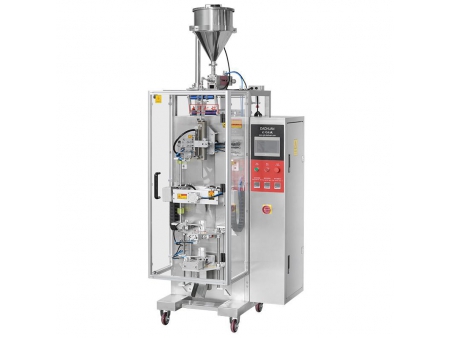

Vertical Form Fill Seal Machine
Request a Quote
Vertical form fill seal machine is a kind of vertical packaging machine and can automatically complete processes including bag making, weighing, filling, sealing, cutting, counting, coding, etc.
Applications
Material packaging: varieties of liquids including milk, soy sauce, vinegar, rice wine, etc.
Material used for packaging: varieties of heat-sealing plastic films such as polyester/polyethylene, polyester aluminized polyethylene, polyester aluminium foil polyethylene, paper polyethylene, nylon, PE, etc.
| Model | SJ-ZF1000 | SJ-ZF2000 |
| Bag length (mm) | 50-150 | 50-250 |
| Bag width (mm) | 65-150 | 65-175 |
| Film width (mm ) | 150-320 | 150-380 |
| Packaging capacity (ml) | 50-550 | 200-1000 |
| Packaging speed (bags/h) | 1100-1300 | 1100-1300 |
| Power (KW) | 2.1 | 2.5 |
| Voltage(V) | 220 | 220 |
| Dimension(mm) | 1050x850x2050 | 1050x850x2050 |
| Machine weight(Kg) | 370 | 380 |
- Can be operated by touch screen of the micro-computer, which is simple and convenient for operation.
- Equipped with photoelectric control device to ensure the integrity of the patterns on packaging bags.
- Both parts in contact with materials and machine shell are made of 304 stainless steel that meets food and drugs hygienic standards.
- Piston pump is used for filling and measuring, featuring simple adjustment and high measurement accuracy.
