Vertical Sorting Machine

Request a Quote

View All: http://solarpanelline.com/10-3-vertical-sorting-machine.html

Automatic module sorter for sorting and sequencing of PV modules

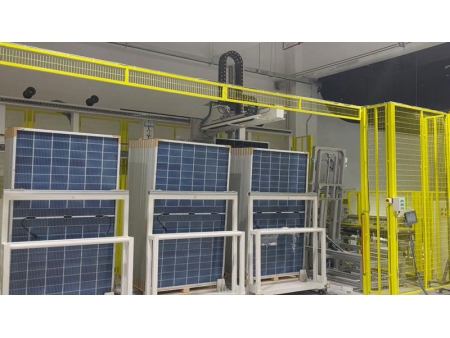

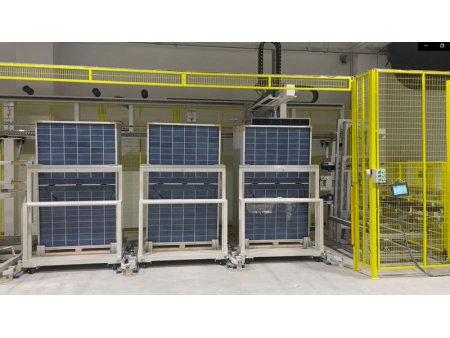

A vertical sorting machine is an automatic module sorter for sorting and sequencing of PV modules. The sorting machine supports flat and vertical sorting according to customer needs or panel powers. The panel sorter is suitable to be applied to 60, 72 and 78 single and dual-glass half panels as well as MBB panels.

Technical Parameters

Item	Parameters
Panel type	Solar panels
Panel size	(1,680-2,650)*(992-1,680)mm
Cycle time	≤20s
Panel sorting	Driven by servo motor
Panel grabbing	By cylinder gripper with suction cup
Stack number	Customizable according to customer needs
Switching time	≤1h
Utilization rate	99%
Overall dimensions (LWH)	22,000W(3,500-5,000)mm (8 bins)
Voltage	3 phase 5 wire 380V, 50Hz, AC±20%
Power	≤5kW/h
Air pressure	0.6-0.7MPa

Features

Capable of flat sorting and long-side and short-side vertical sorting;
Equipped with a bin trolley;
Supporting automatic packing or manual packing;
Using self-developed 6-axis transplanting method to ensure the operation is simple, flexible and fully automatic without requiring personnels;
automatically vertical turning applied to the fed materials of big size panels like 210mm;
Adapting to framed panels and frameless panels.
The touch screen supporting parameter setting;
High-level protection system;
Connected with the MES system with communication ports through which the pallet can be set.
