Auto Labelling Machine
Request a Quote

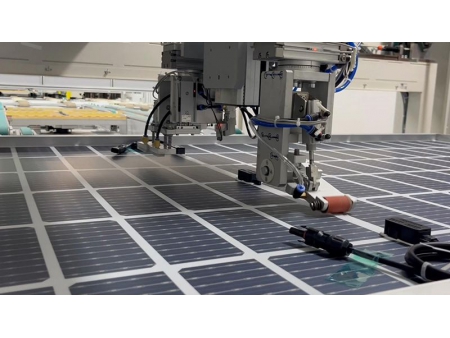

Used for automatic application of labels during PV module manufacturing
Technical Parameters
| Item | Parameters |
| Panel type | Solar panels |
| Panel size | (1,680-2,650)*(992-1,500)mm |
| Cycle time | 20s |
| Panel positioning accuracy | ±0.5mm |
| Alignment mode | Cylinder |
| Labelling accuracy | ±0.5mm |
| Breakage rate | ≤0.01% |
| Utilization rate | ≥99% |
| Overall dimensions (L*W*H) | 3,930*2,030*1,800mm |
| Voltage | 380V 10A |
| Power | 3kW |
| Air pressure | 0.8MPa |
Features
- Equipped with 2-3 working heads for accurately labeling tags, anti-counterfeiting codes and barcodes;
- The labelling machine uses the information interaction between automatic code scanning and the MES system to drive label printing and realize the 100% successful scanning rate;
- Full stroke labeling of high speed and precision, qualified labeling≥99%.
