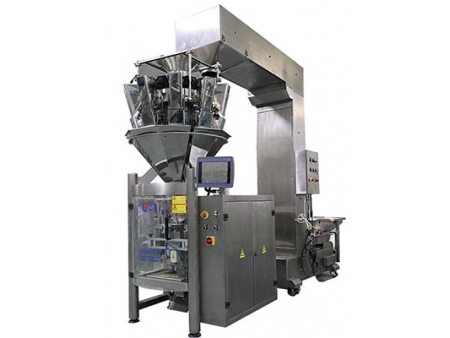

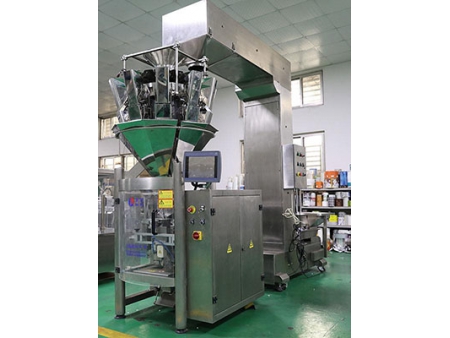

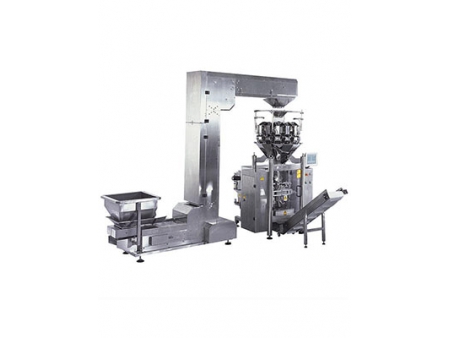

Vertical Granule Filling Sealing Machine
(0.2-5kg)
Packing Sample Pictures
| Model | HP-1040a08 | HP-1440a05 | HP-1040b10 | HP-1250a10 |
| Display Screen | 10.4 inch touch screen | |||
| Number of weigh head | 10 | 14 | 10 | 12 |
| Volume of weigh hopper | 0.8L | 0.5L | 1L | 1L |
| Hopper material | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel |
| Single weighing range | 10-500g | 10-500g | 10-1000g | 10-1000g |
| Max. weight | 1000g | 1000g | 1000g | 1000g |
| Measuring precision | ±0.3~1.5g | ±0.3~1.5g | ±0.5~1.5g | ±0.5~1.5g |
| Film width | 400mm | 400mm | 400mm | 500mm |
| Bag width | 60-190mm | 60-190mm | 60-190mm | 60-240mm |
| Bag length | 50-230mm | 50-230mm | 50-230mm | 50-290mm |
| Film type | Laminated film | Laminated film | Laminated film | Laminated film |
| Drive method of film feeding | Servo motor | Servo motor | Servo motor | Servo motor |
| Drive method of horizontal sealing | Cylinder | Servo motor | Cylinder | Servo motor |
| Compressed air consumption | 0.3³/min,0.6MPa | 0.2³/min,0.6MPa | 0.3³/min,0.6MPa | 0.3³/min,0.6MPa |
| Max. packaging speed | 60 bags/min | 100 bags/min | 60 bags/min | 100 bags/min |
| Power | 4KW | 5KW | 4KW | 4KW |
| Voltage | 220V50/60Hz | 220V50/60Hz | 220V50/60Hz | 220V50/60Hz |
| N.W./G.W | 500kg/700kg | 540kg/740kg | 550kg/750kg | 650kg/850kg |
| Packaging size | 1556×1366×2078 | 1556×1366×2078 | 1530×1300×2300 | 1630×1320×2600 |
| | | | | |
| No. | Name | Brand |
| 1 | Servo motor | Schneider |
| 2 | Relay, terminal | WEIDMULLER |
| 3 | Leakage switch | DELIXI |
| 4 | AC contactor | DELIXI |
| 5 | Temperature controller | AELTA |
| 6 | Switching-mode power supply | AELTA |
| 7 | Air valve | AELTA |
Features
1. High Packaging Efficiency
The vertical granule filling sealing machine is designed with a micro weighing device to complete the two procedures together. The packaging speed is thus increased.
2. High Precision
All processes are performed in a precise manner, like weighing, filling, sealing, etc.
3. Easy Operation
With the application of a micro-computer and touchscreen, the vertical packaging system operation and maintenance is easy and convenient.
4. Small Volume
The vertical granule filling sealing machine has a compact structure which greatly lowers the machine height and reduces space occupation.
5. Accurate Positioning
Precise positioning and packaging is ensured thanks to the film feeding servo system and photoelectric sensor.
6. Fast Investment Returns
The high efficiency and mass production saves a lot of raw materials and labor cost.
Main Functions
The vertical packaging machine possesses multiple functions, such as weighing, filling, film drawing, bagging, sealing, counting, printing, coding and hole punching, etc.
Scope of Application
This granule packaging machine is appropriate for various types of snacks and nuts, such as chips, rice crust, walnut, filbert, pistachio, peanut, candy, sunflower seeds, prune, chocolate, pet feed, etc.
