Form-Fill-Seal (HFFS) & Pouch Packing Machine, YL-8SM
Integrated Roll-Film Bagging & Rotary Filling System
The HFFS (Horizontal Form-Fill-Seal) pouch packaging machine is capable of creating flat pouches. Constructed from stainless steel or powder-coated machine frame, with all product contact parts made of advanced stainless steel or other food-grade materials, the automatic roll stock bagger is designed to meet high hygienic standards and deliver outstanding corrosion resistance and a long service life. The pouch packaging equipment can be integrated with various automatic weighing and dosing systems and elevators. To meet specific operational requirements, it supports advanced modules such as safety door emergency stop, automatic card dispensing, and rejection of non-conforming products. The entire process is fully automated and doesn’t need manual intervention, significantly boosting production throughput while minimizing labor and overhead expenses.
| Capacity(pouches/min) | 20-45 |
| Pouch size | Length: 100-300mm Width: 80-140mm |
| Packing weight | Max. weight 1kg |
| Sealing method | Heat seal |
| Power consumption | 3.2kW |
| Power supply | 3-phase 380V 50Hz |
| Compressed air | 6-8kgf/cm² 0.8m³/min |
| Machine weight | 1400kg |

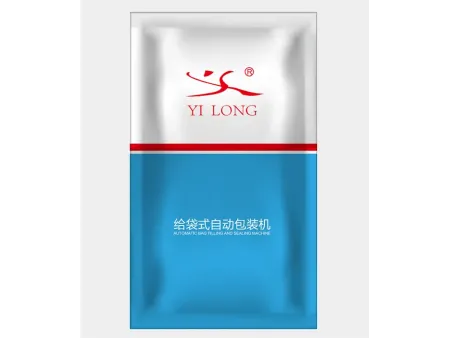

| Pouch style | Flat Bag |
| Machine dimensions | Length: 2200mm Width: 1610mm Height: 1700mm |
- Premium Materials & Hygiene Standards
Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life. - User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system. - Waste Prevention System
The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste. - Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings. - Easy Maintenance and Convenient Inspection
The HFFS packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance.
