Heavy-Duty Premade Pouch Packing Machine, YL-8T
Request a Quote
Pouch Filling and Sealing System
The YL-8T premade pouch packaging machine features touch screen control, one-button bag width adjustment, multi-head weigher, support platform (mezzanine for the weigher), metal detector, automatic palletizing, film wrapping, and anti-toppling system. The production capacity is 5-20 pouches per minute.
Pouch Style

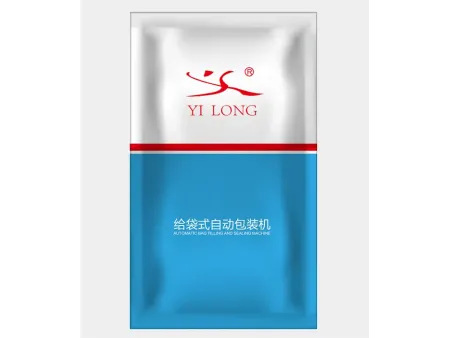

Flat Bag

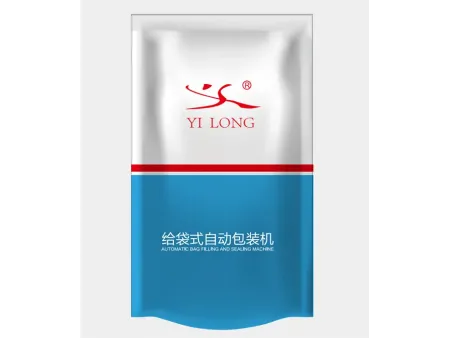

Stand-up Bag
Working Process
- Bag feeding (giving bag)
- Zipper opening & date coding (optional)
- Pouch opening (top & bottom opening)
- Product filling
- Pouch cleaning & second filling (optional)
- First heat sealing
- Second heat sealing & cooling/forming
- Discharge / finished product output
Specifications
| Capacity(pouches/min) | ||
| Pouch size | Length: 500-750mm Width: 300-400mm (Height customizable) | Length: 300-480mm Width250-360mm |
| Packing weight | 3kg-15kg | 3kg-10kg |
| Sealing method | Heat seal | Heat seal |
| Power consumption | 7.5kW | 3.8kW |
| Power supply | 3-phase 380V50Hz | 3-phase 380V 50Hz |
| Compressed air | 6-8kgf/cm² 0.8m³/min | 6-8kgf/cm² 0.8m³/min |
| Machine weight | 4000kg | 2100kg |
| Pouch style | Flat pouch, stand-up bag | Flat pouch, stand-up bag |
| Machine size | Length: 4400mm Width: 2310mm Height: 2170mm | Length: 3190mm Width: 2000mm Height: 1720mm |
Features
- Premium Materials & Hygiene Standards
Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life. - User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system. - Waste Prevention System
The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste. - Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings. - Easy Maintenance and Convenient Inspection
The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance. - Minimized Material Loss
Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
