Premade Pouch Filling Machine, YL-16SY
Pick-Fill-Seal Packaging System
This YL-16SY rotary premade pouch packaging machine offers exceptional versatility, supporting various formats such as 4-side seal, 3-side seal, back-seal, and stand-up pouches (Doypacks). It is engineered for precision handling of small formats, with a minimum size of 80mm x 100mm and a filling range of 10g to 500g.
The premade pouch packaging system is highly compatible with diverse packaging substrates, including soft, single-layer PE films. To maximize operational efficiency, it features an integrated pouch opening detection system that synchronizes with the dosing unit to prevent product spillage. Combined with the 'No Fill, No Seal' safety interlock, the premade pouch packaging machine effectively eliminates both product and material waste.
- Bag feeding (giving bag)
- Zipper opening & date coding (optional)
- Pouch opening (top & bottom opening)
- Product filling
- Pouch cleaning & second filling (optional)
- First heat sealing
- Second heat sealing & cooling/forming
- Discharge / finished product output
| Capacity | 50-90 pouches/min |
| Pouch size | Length: 100-300mm Width: 80-140mm |
| Packing weight | Max. weight 1kg |
| Sealing method | Heat seal |
| Power consumption | 4.5kW |
| Power supply | 3-phase 380V 50Hz |
| Compressed air | 6-8kgf/cm² 0.8m³/min |
| Machine weight | 2800kg |

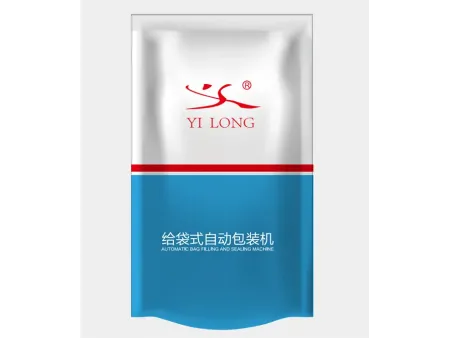

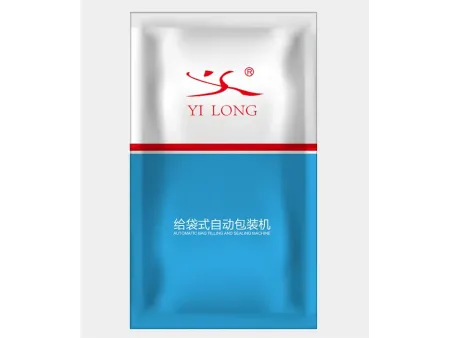

| Pouch style | Flat Bag, Stand-up Bag |
| Machine dimensions | Length: 2090mm Width: 2000mm Height: 1530mm |
- Premium Materials & Hygiene Standards
Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life. - User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system. - Waste Prevention System
The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste. - Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings. - Easy Maintenance and Convenient Inspection
The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance. - Minimized Material Loss
Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
