Large Premade Pouches Filling & Sealing

This automatic premade pouch filler sealer machine can integrate seamlessly with various weighing and dosing systems to handle both single and multi-material packaging requirements. To meet specific operational requirements, the automatic rotary pouch packing equipment supports advanced modules such as safety door emergency stop, automatic card dispensing, and rejection of non-conforming products. The entire process is fully automated, significantly boosting production throughput while minimizing labor and overhead expenses.

Leave a Message
Pouch Style

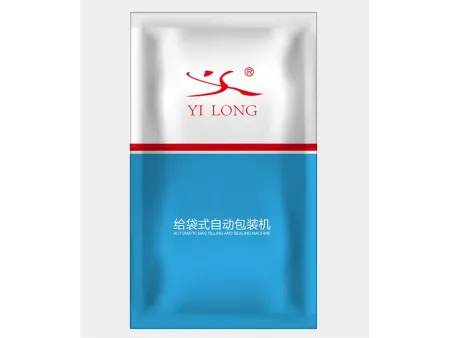

  • Flat Bag

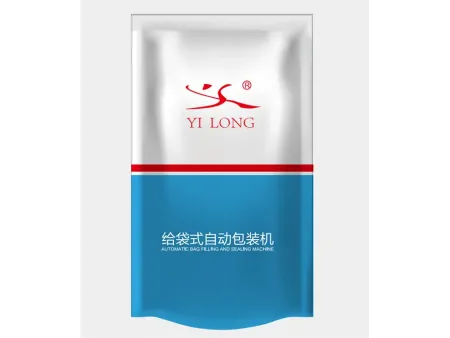

  • Stand-up Bag
  • Zipper Bag
  • Flat Bottom Bag
Working Process
  • Bag feeding (giving bag)
  • Zipper opening & date coding (optional)
  • Pouch opening (top & bottom opening)
  • Product filling
  • Pouch cleaning & second filling (optional)
  • First heat sealing
  • Second heat sealing & cooling/forming
  • Discharge / finished product output
Specifications
Capacity(pouches/min) 20-50 15-45 15-40
Pouch size Length: 140-380mm
Width: 140-270mm
Length: 220-480mm
Width: 200-305mm
Length: 220-480mm
Width: 250-360mm
Packing weight Max. weight 2.5kg Max. weight 2.5kg Max. weight 2.5kg
Sealing method Heat seal Heat seal Heat seal
Power consumption 3.8kW 3.8kW 3.8kW
Power supply 3-phase 380V 50Hz 3-phase 380V 50Hz 3-phase 380V 50Hz
Compressed air 6-8kgf/cm² 0.8m³/min 6-8kgf/cm² 0.8m³/min 0.8cm³/min
Machine weight 1820kg 1860kg 1900kg
Pouch style Flat Bag, Stand-up Bag, Zipper Bag, Flat Bottom Bag Flat Bag, Stand-up Bag Flat Bag, Stand-up Bag
Machine dimensions Length: 2800mm
Width: 1871mm
Height: 1500mm
Length: 2990mm
Width: 1871mm
Height: 1600mm
Length: 3150mm
Width: 2000mm
Height: 1720mm
Features
  • Premium Materials & Hygiene Standards
    Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life.
  • User-Friendly Operation & Integration
    Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system.
  • Waste Prevention System
    The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste.
  • Superior Seal Quality
    A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings.
  • Easy Maintenance and Convenient Inspection
    The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance.
  • Minimized Material Loss
    Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
