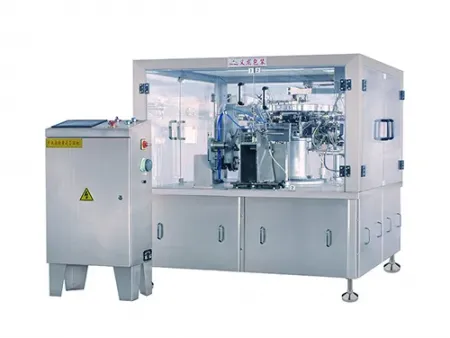

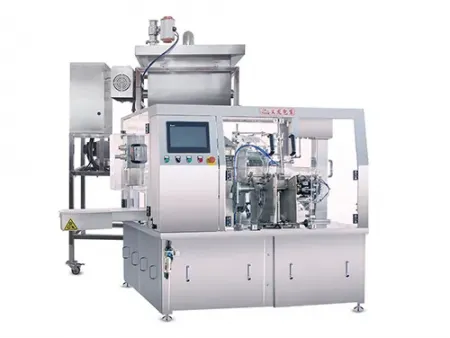

Automatic Premade Pouch Packaging Machine, YL-8SR
Rotary Pouch Filling and Sealing System
The YL-8SR automatic rotary premade pouch packaging machine is designed for high-efficiency packaging of flat pouches and PE pouches. This versatile pouch filler integrates seamlessly with various weighing and dosing systems to handle both single and multi-material packaging requirements.
To meet specific production needs, customers can customize the premade pouch packaging machine with advanced features such as emergency stop on door opening, automatic card feeding, and abnormal product rejection. The entire process is fully automated, requiring minimal manual intervention. This effectively enhances production efficiency, significantly reduces labor and management overhead, and lowers overall operational costs
- PE Pouch
- Flat Bag
- Stand-Up Bag
- Shaped Pouch
- Bag feeding (giving bag)
- Zipper opening & date coding (optional)
- Pouch opening (top & bottom opening)
- Product filling
- Pouch cleaning & second filling (optional)
- First heat sealing
- Second heat sealing & cooling/forming
- Discharge / finished product output
| Capacity(pouches/min) | 30-60 |
| Pouch size | Length:100-300mm Width:100-210mm |
| Packing weight | Max. weight 1kg |
| Sealing method | Heat seal |
| Power consumption | 3.2kW |
| Power supply | 3-phase 380V 50Hz |
| Compressed air | 6-8kgf/cm² 0.8m³/min |
| Machine weight | 1370kg |
| Pouch style | PE pouch, flat bag, stand-up bag, shaped pouch |
| Machine dimensions | Length:1600mm Width:1580mm Height:1400mm |
- Premium Materials & Hygiene Standards
Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life. - User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system. - Waste Prevention System
The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste. - Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings. - Easy Maintenance and Convenient Inspection
The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance. - Minimized Material Loss
Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
Share your packaging requirements. Our experts are here to help!
