High-Speed Premade Pouch Packing Machine, YL-10SR
Request a Quote
Auto-Packaging System for Flat & Stand-up Bags
The YL-10SR premade pouch packaging machine streamlines the entire automated packaging process, encompassing automatic dosing, seal integrity inspection, automated sorting and discharge, robotic tray loading, sterilization, tray unloading, and end-of-line case packing and palletizing.
Production Capacity: Single Lane: 20-50 pouches/min; Dual Lane: 50-90 pouches/min
Pouch Style

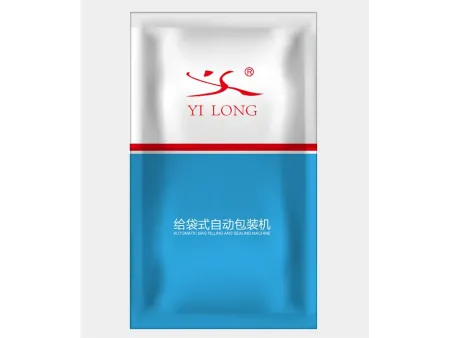

Flat Bag

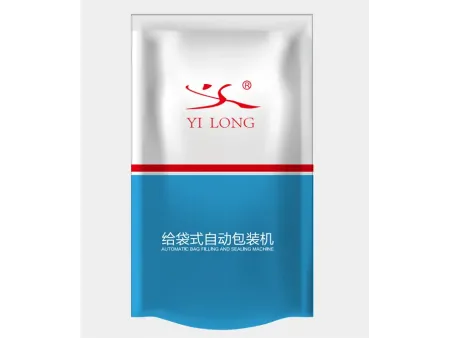

Stand-up Bag
Working Process
- Bag feeding (giving bag)
- Zipper opening & date coding (optional)
- Pouch opening (top & bottom opening)
- Product filling
- Pouch cleaning & second filling (optional)
- First heat sealing
- Second heat sealing & cooling/forming
- Discharge / finished product output
Specifications
| Capacity | Single lane: 20-50 pouches/min; Dual Lane: 40-90 pouches/min |
| Pouch size | Length: 100 - 300mm Width: 100 - 200mm |
| Packing weight | Max. weight 1kg |
| Sealing method | Heat seal |
| Power consumption | 3.2kW |
| Powder supply | 3-phase 380V 50Hz |
| Compressed air | 6-8kgf/cm², 0.8m³/min |
| Machine weight | 1400kg |
| Pouch style | Flat pouch, stand - up bag |
| Machine dimensions | Length: 1900mm Width: 1300mm Height: 1550mm |
Features
- Premium Materials & Hygiene Standards
Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life. - User-Friendly Operation & Integration
Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system. - Waste Prevention System
The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste. - Superior Seal Quality
A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings. - Easy Maintenance and Convenient Inspection
The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance. - Minimized Material Loss
Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
