Flexible Pouch Filling & Sealing System, YL-8SSD/8SSDZ/10SSD

Flexible Pouch Filling & Sealing System, YL-8SSD/8SSDZ/10SSD
Flexible Pouch Filling & Sealing System, YL-8SSD/8SSDZ/10SSD
Flexible Pouch Filling & Sealing System, YL-8SSD/8SSDZ/10SSD
Request a Quote

Multi-Hopper System

Leave a Message

This premade pouch packaging machine is engineered for handling various pouches, including flat bag, stand-up bag, flat-bottom bag and son on. They are widely used for multi-component filling applications, e.g., pet food industry to provide doubled throughput.

Constructed from stainless steel or powder-coated machine body, with all product contact parts made of advanced stainless steel or other food-grade materials, the automatic multi-bucket pouch filler is designed to meet high hygienic standards and deliver outstanding corrosion resistance and a long service life.

The automatic pouch packing equipment can be integrated with various automatic weighing systems and elevators. To meet specific operational requirements, it supports advanced modules such as safety door emergency stop, automatic card dispensing, and rejection of non-conforming products. The entire process is fully automated, requiring no manual intervention, significantly boosting production throughput while minimizing labor and overhead expenses.

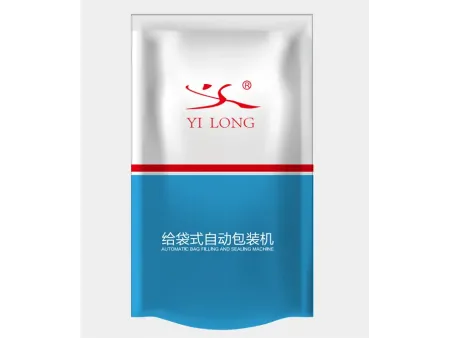

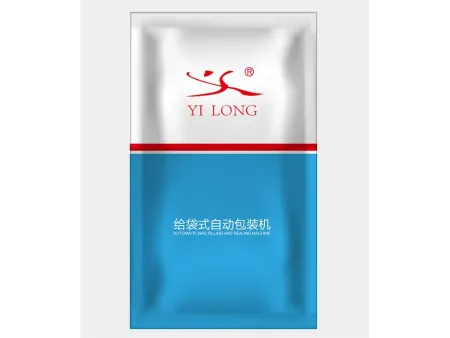

Pouch Style
  • Flat Bag
  • Stand-up Bag
  • Flat Bottom Bag
Working Process
  • Bag feeding (giving bag)
  • Zipper opening & date coding (optional)
  • Pouch opening (top & bottom opening)
  • Product filling
  • Pouch cleaning & second filling (optional)
  • First heat sealing
  • Second heat sealing & cooling/forming
  • Discharge / finished product output
Specifications
Capacity(pouches/min) 20-50 20-50 15-45
Pouch size Length: 140-380mm
Width: 140-270mm
Length: 140-380mm
Width: 140-270mm
Length: 140-480mm
Width: 200-300mm
Packing weight Max. weight 2.5kg Max. weight 2.5kg Max. weight 3kg
Sealing method Heat seal Heat seal Heat seal
Power consumption 4.8kW 4.8kW 6.8kW
Power supply 3-phase 380V 50Hz 3-phase 380V 50Hz 3-phase 380V 50Hz
Compressed air 6-8kgf/cm² 0.8m³/min 6-8kgf/cm² 0.8m³/min 6-8kgf/cm² 0.8m³/min
Machine weight 1950kg 1950kg 5000kg
Pouch style Flat Bag, Stand-Up Bag, Flat Bottom Bag Flat Bag, Stand-Up Bag, Flat Bottom Bag Flat Bag, Stand-Up Bag, Flat Bottom Bag
Machine dimensions Length: 2800mm
Width: 2200mm
Height: 1640mm
Including lower piezoelectric cylinder:
Length: 2800mm
Width: 2200mm
Height: 2340mm
Length: 2820mm
Width: 2255mm
Height: 1610mm
Including lower piezoelectric cylinder:
Length: 2820mm
Width: 2255mm
Height: 2260mm
Length: 3294mm
Width: 2030mm
Height: 2340mm
Features
  • Premium Materials & Hygiene Standards
    Constructed from stainless steel, with all product contact parts made of 304/316L stainless steel or other food-grade materials, the automatic pouch filler is designed to meet high hygienic standards and deliver corrosion resistance and a long service life.
  • User-Friendly Operation & Integration
    Designed with PLC touch screen HMI for easy installation and simple operations. Can be integrated with user’s MES system.
  • Waste Prevention System
    The packaging system synchronizes with weighing and dosing system to avoid material waste. No-Filling-No-Sealing function prevents pouches waste.
  • Superior Seal Quality
    A specially designed sealing shaping station ensures the seals are flat and wrinkle-free. This keeps the pouch graphics intact, ensures high seal integrity, and results in an extremely low failure rate, leading to significant material savings.
  • Easy Maintenance and Convenient Inspection
    The premade pouch packaging machine primarily utilizes mechanical transmission and oil-impregnated bearings, which reduce the number of lubrication points and simplify overall maintenance.
  • Minimized Material Loss
    Wrinkle-free sealing preserves pouch graphics, ensures excellent seal quality, and minimizes the failure rate, thereby reducing packaging material loss.
