Automatic Horizontal Premade Pouch Packaging Machine

Request a Quote

Website: http://pouchpacking-en.com/3-horizontal-premade-pouch-packaging-machine.html

Horizontal filling and sealing machine for premade flat, stand-up, doypack and gusset pouches filled with granule, powder or liquid products

Bag width
80 to 220mm
Filling range
10 to 2000g
Packaging speed
10 to 25 bags per minute

Sauce Packaging Machine

Granule Packaging Machine

Powder Packaging Machine

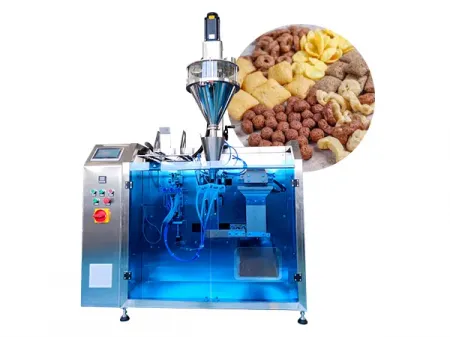

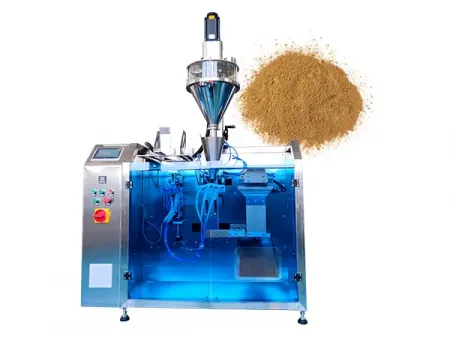

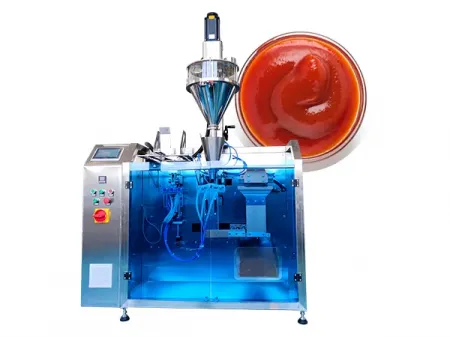

The WHH series horizontal premade pouch packing machine is designed for filling and sealing various materials, including powders, granules, and liquids. It works with flat pouches, stand-up pouches, and M-type pouches.

This horizontal premade pouch packing machine is compact and has a smaller production capacity, with a speed of 15-20 bags per minute. It is ideal for small-scale companies or startups transitioning from manual production to automated processes.

Applications

Our horizontal premade pouch packing machine is designed for a wide range of packaging applications, including:

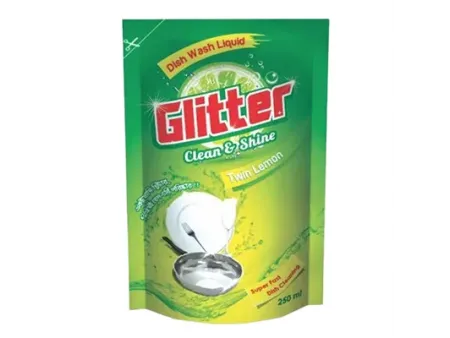

Liquids:

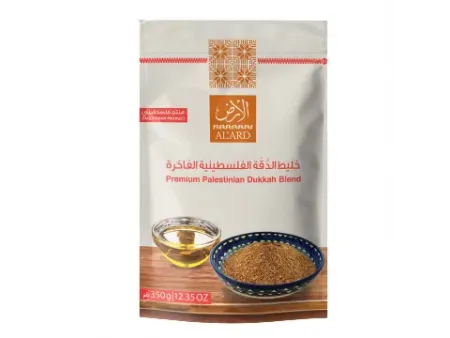

Powders:

Granules:

This premade pouch packing machine offers flexibility for various industries, ensuring efficient packaging across different material types.

Bag Styles

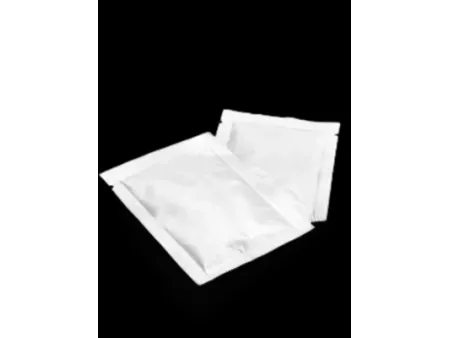

Four side seal bag

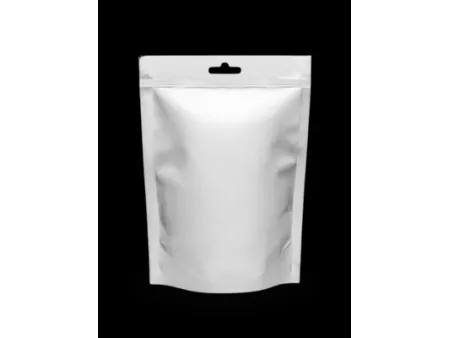

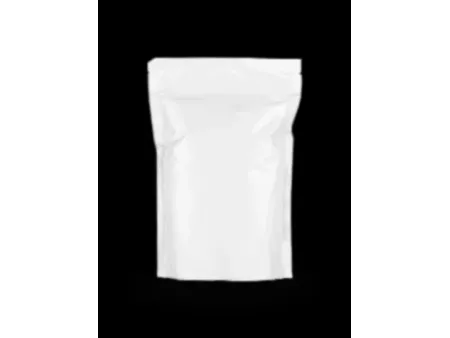

Stand-up bag

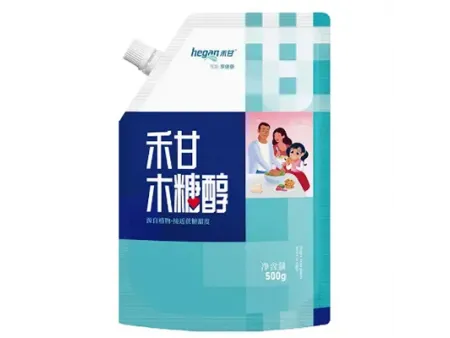

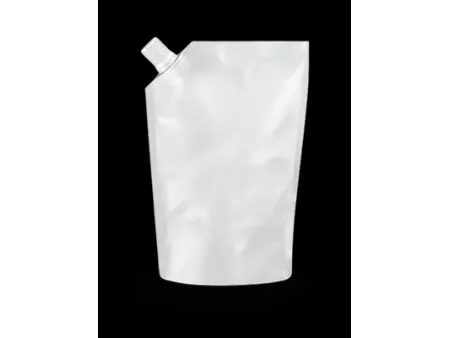

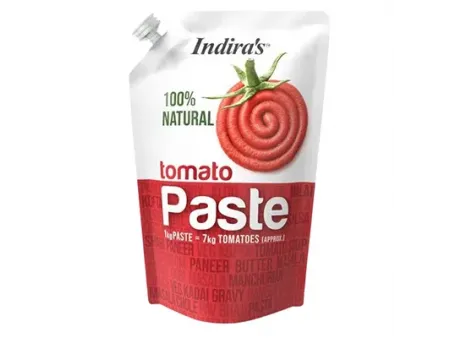

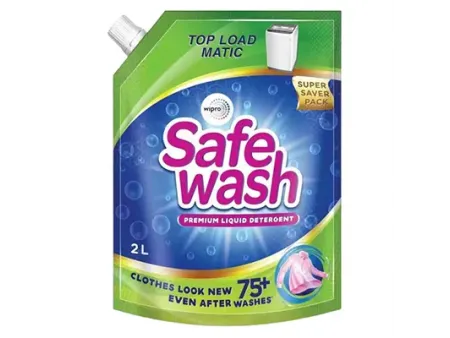

Spout pouch
Doypack/stand-up zipper pouch

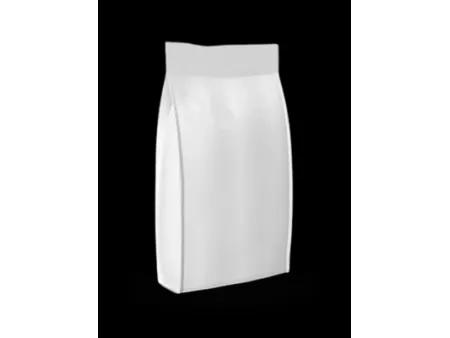

Eight side seal bag/gusset pouch

Specifications

Model	WH3-220H
Bag size	W: 80-220mm L: 100-300mm
Packaging speed	10-25 bags/min
Filling range	10-2000g
Machine dimensions	1300×800×1200mm
Machine weight	300kg
Air consumption	0.9m³/min

Standard Configurations

PLC	Frequency Converter	Touch Screen	Relay	Bearing
Siemens	Siemens	Siemens	Weidmuller	NSK

Workflow

Step 1

Bag Loading
The premade pouch is automatically picked from the bag magazine, preparing it for filling.
Step 2

Bag Opening
The bag opening is made using a suction cup or mechanical device to ensure the pouch is fully open.
Step 3

Filling
The required material is accurately filled into the pouch.
Step 4

Bag Closing
The bag opening is closed, ensuring it is neat and even.
Step 5

Sealing
The bag is sealed using heat sealing or clamping to ensure it is securely closed.

How do I adjust the packaging size of the horizontal premade pouch packing machine?

Bag Magazine Width: Adjusted via the spiral mechanism.
Bag Clamp Distance: Set through the touch screen interface.

What is the suitable bag length range for the packaging equipment?

Typically, the packaging machine supports bag lengths ranging from 100mm to 300mm.

Can the equipment's operating status be monitored via an automatic control system?

Yes, the packaging machine can be monitored by connecting it to your company’s production management software.

Does this packaging machine support automatic detection of the bag seal quality?

Yes, additional equipment can be installed for seal quality detection.

How does the packaging equipment protect fragile materials?

The premade pouch packing machine uses a buffering mechanism during the filling process to protect fragile products.

What types of sealing systems are available for the packaging equipment?

The premade pouch packing machine supports heat sealing and ultrasonic sealing.
Sealing patterns include mesh, straight, and line seals (for PE bags).

Get in touch with us to find out how our horizontal premade pouch packing machine can improve your production!
