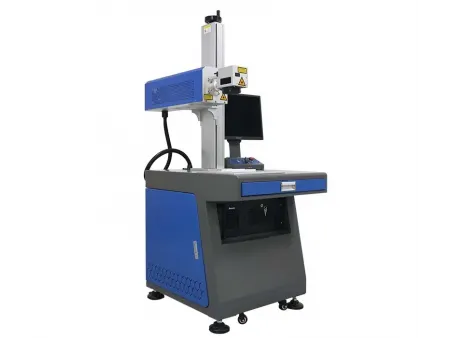

Desktop CO₂ Laser Marking Machine
- Laser wavelength 10.6μm
- Marking range 50×50mm~400×400mm
- Beam quality M²<1.5
- Machine weight 140kg
The desktop CO₂ laser marking machine features a compact, 'integrated equipment and workstation' design. Its body height and operating angle strictly adhere to ergonomic standards, eliminating the need for an additional workbench. It can seamlessly integrate into production lines or small workshops, boosting space utilization by over 50%. The equipment supports precise marking of text, serial numbers, QR codes, and high-precision logos, adapting to a wide range of non-metallic materials. It meets the stringent requirements for industrial-grade product traceability while also providing personalized identification for scenarios like gift packaging and art customization, truly achieving 'multi-functional, precise, and efficient' performance.
- Suitable for marking, cutting, and drilling various non-metallic materials, such as wood, paper, fabric, acrylic, leather, plastic, rubber, resin, ceramics, coated materials, stone, and more.

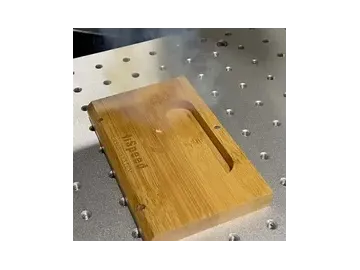

- Bamboo laser engraving

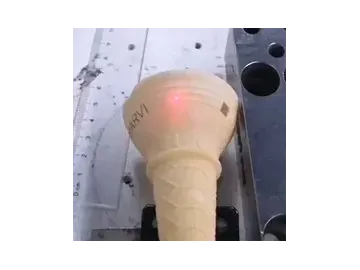

- Waffle cone shaped cup laser marking
- Shoe sole laser marking
- Wood laser engraving
- PCB QR code laser marking
- Cuttable film laser engraving
- Stainless steel tumbler laser marking
- Notebook hardcover laser marking
- Technical Data
- Configuration
- FAQ
- Why Us
- Laser power 30W, 60W, 100W, 200W, 300W
- Laser type CO₂ Laser
- Laser wavelength 10.6μm
- Marking range 50×50mm~400×400mm
- Beam quality M²<1.5
- Scanning speed F=160mm, ≤7000mm/s
- Pulse repetition frequency 0~25 kHz
- Min. line width 0.1mm (depending on material) @F=160mm
- Min. character height 0.6mm @ F=160mm
- Cooling mode 30W air cooling, ≥60W water cooling
- Power supply 1.5kW/AC220V/50Hz (Voltage fluctuation range ±5%; a voltage stabilizer is required if exceeding this range)
- Operating temperature & humidity 0℃~40℃, 30%≤RH≤85% (Operating outside this range may affect equipment performance and lifespan; consider installing air conditioning if used outside this range)
- Machine dimensions 800×620×1650mm
- Package size 1170×700×1110mm
- Machine weight 140kg
- Package weight 155kg
- 30W laser powerWorking area ≤110×110mm
- 60W laser powerWorking area ≤300×300mm
- 100W laser powerWorking area ≤300×300mm for engraving wood up to 1mm deep
- 200W laser powerWorking area ≤300×300mm for cutting paper cards or leather
- 300W laser powerWorking area ≤400×400mm for cutting paper cards or leather

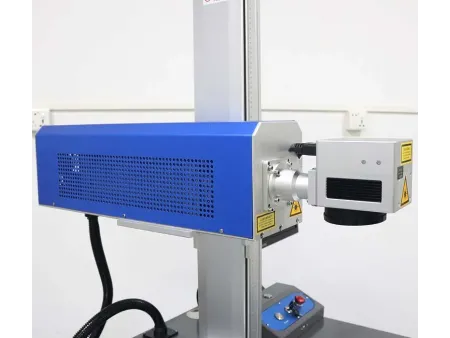

RF CO₂ laser
Features high electro-optical conversion efficiency, requires virtually no maintenance, and is suitable for high-volume production needs; supports multiple wavelengths (e.g., 10.6μm, 9.3μm).
Galvo scanner
The galvo scanner boasts fast scanning speeds, reaching tens of thousands of scans per second; it features a sealed design for long lifespan and low maintenance costs. Electromagnetic or piezoelectric drive methods reduce mechanical wear, further enhancing the equipment's durability and reliability.
F-theta lens
Equipped with an F-theta lens for 1064nm wavelength, mainly used in fiber laser marking machines. Due to its longer wavelength, it offers strong energy penetration, making it suitable for marking various metal and non-metal materials. It supports long-term operation without the need for consumables to be added or replaced. Currently, we have received no user feedback regarding F-theta lens damage.
Control card
Equipped with a genuine JCZ EZCAD control board, ensuring the stability of the entire marking system. The software interface supports multiple language versions (Chinese, English, Italian, Russian, Korean, Japanese, Spanish, Portuguese, etc.). Its powerful functions include text marking, QR code marking, vector graphic marking, automatic serial number skipping, and more.

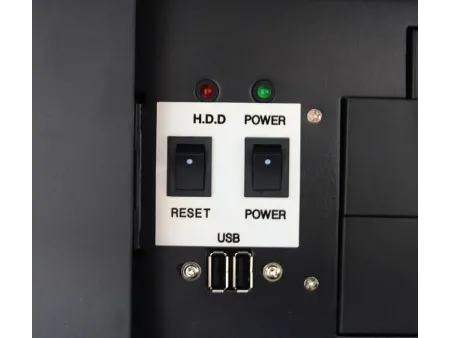

Computer
Features an industrial computer with a Windows 10 system and a 19-inch LCD display to ensure smoother operation of the entire laser equipment.

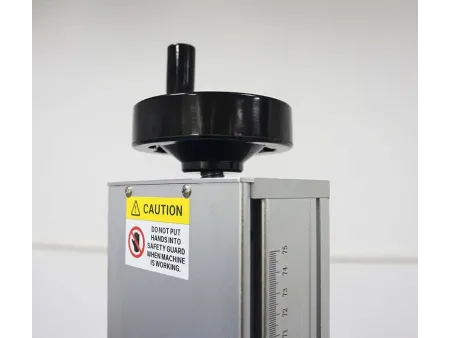

Column
Supports various working area options (e.g., 110×110mm, 150×150mm, etc.), meeting diverse marking requirements. The Z-axis, through precise mechanical design and control systems, ensures accurate laser focus alignment at different heights for stable and reliable marking results.
Laser safety warning labels
Plays a crucial role in scenarios involving laser applications, primarily serving to alert people to potential laser hazards and ensure personnel safety.
- Fume Extractor
- 80mm rotary clamp fixture
- Roller rotary axis
- Rotary axis with tailstock
Water Chiller
- CO₂ laser
- Laser control cabinet
- Work panel
- Galvo scanner
- F-theta lens
- Control card
- Laser power supply
- Computer
- Power cord
- Safety goggles
- Foot pedal switch
- Aluminum test piece
- Hex key tool set
- Water chiller (for 60w and above)
- Equipment warranty certificate
- Shipping accessories list
- Product catalog
