Automatic Boneless Meat Dicing Line
Request a Quote
- Conveyor Speed 3-18m/min
- Cutting thickness 2–50 mm
Automatic boneless meat dicing line is suitable for cutting of deboned poultry and livestock meat, producing uniform cubes and diced pieces. It can process chicken breast, beef, duck breast, lamb, fish and other fresh meats.
The system uses a unique electric-roller drive for stable operation. Cutting thickness is adjustable, and the cutting range reaches up to 250 mm, allowing even thick pieces of fresh meat to be processed. Customized cutting thicknesses are also available.
Applications

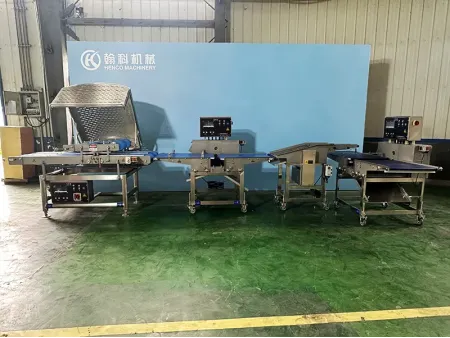

Equipment Used in the Meat Processing Line
Fresh Meat Slicing Machine Specifications
| Model | | |
| Conveyor width | 2 × 160 mm | 160 mm |
| Conveyor speed | 3-18 m/min | 3-18 m/min |
| Max product width | 130 mm | 130 mm |
| Cutting thickness | 2-50 mm | 2-50 mm |
| Cutting speed | 120 pcs/min | 120 pcs/min |
| Infeed/outfeed height | 1000 ± 50 mm | 1000 ± 50 mm |
| Rated power | 1.65 kW | 0.95 kW |
| Dimensions | 2180 × 1260 × 1300 mm | 1690 × 935 × 1360 mm |
Intelligent Portion Cutter Specifications
| Model | | | |
| Conveyor speed | 3-18 m/min | 3-18 m/min | 2-10 m/min |
| Product width | 240 mm | 140 mm | 500 mm |
| Cutting thickness | 2-50 mm | 1-30 mm | 5-80 mm |
| Cutting speed | 1000 pcs/min | 160-320 pcs/min | 65 pcs/min |
| Infeed/outfeed height | 1050 ± 50mm | 1050 ± 50mm | 1050 ± 50mm |
| Rated power | 7.6 kW | 1.37 kW | 4.87 kW |
| Dimensions | 2500 × 1200 × 1700 mm | 2300 × 730 × 1510 mm | 2180 × 1100 × 1570 mm |
Features
- A specially designed gripping unit that holds the meat firmly in place during cutting, while the blade-pressing mechanism ensures smooth passage through the blade set. This helps maintain square and uniform shapes, reduces deformation and minimizes waste.
- Dual-channel conveyor design delivers high efficiency with lower energy consumption. Operation is simple and maintenance is convenient.
- Equipped with German Siemens electrical components for safety and stability. Constructed from 304 stainless steel and food-grade plastics, compliant with HACCP requirements, providing long service life and reliable performance.
Production Flow Diagram
- Meat Slicing Machine
- Intelligent Portion Cutter
- Linear Vibrating Screen
-
- Slicing
Fresh chicken breast is horizontally sliced into even layers with smooth, uniform surfaces using the slicer. -
- Portioning
The intelligent portion cutter cuts the sliced meat into small, consistent cubes. -
- Linear Vibrating Screen
The conveyor gently separates the diced pieces, preventing them from sticking together.
