High-Speed Metal Stamping Presses

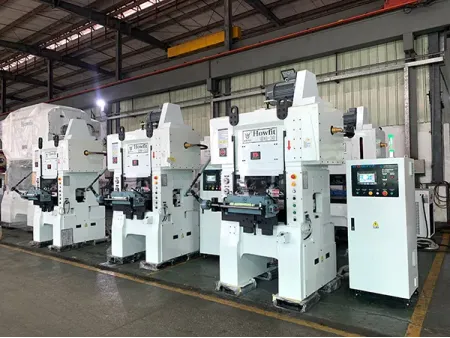

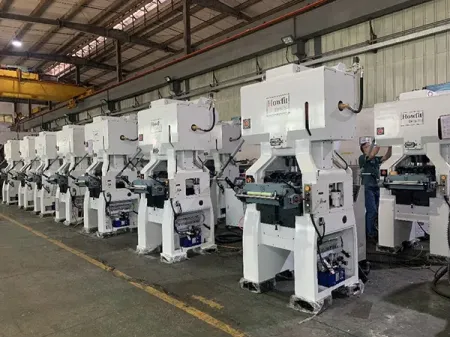

DHS Series Mechanical Presses
This straight side press adopts an integrated gantry frame structure, with guide posts and slide built as a single, precisely aligned unit. This design eliminates fitting errors between separate components, ensuring smoother slide motion, improved parallel accuracy, and long-term stability during high-speed precision metal stamping. With a tonnage range of 30 to 45 tons, a stroke length of 20–30 mm, and speeds up to 200–800 strokes per minute, this press is ideal for lead frame stamping, metal button forming, and rotor and stator production in precision manufacturing.
- The monoblock straight side frame offers greater stability and rigidity compared with conventional C-frame presses.
- Enhances slide motion accuracy and maintains long-term precision.
- The internal oil-free piping design prevents oil line fractures and extends machine lifespan.
- A new oil-sealing structure effectively prevents leakage for cleaner and more reliable operation.

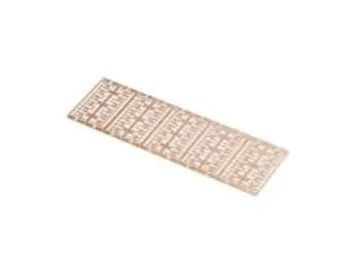

- Lead frame stamping
- Metal button forming
- IC chip stamping
- Rotor and stator lamination stamping
- Motor drive
- Locking pump
- Worktable
- Die height indicator
- Material lubrication tank
- Pneumatic and hydraulic pressure gauge
Outline Dimensions
Technical Specifications
| Press capacity (ton) | 30 | ||
| Stroke (mm) | 20 | 25 | 30 |
| Stroke speed (spm) | 200-800 | 200-700 | 200-650 |
| Shut height (mm) | 185-215 | 183-213 | 180-210 |
| Slide adjustment (mm) | 30 | ||
| Worktable size (bolster) (mm) | 550×450×80 | ||
| Slide area (mm) | 600×360 | ||
| Scrap hole size (mm) | 100×480 | ||
| Main motor (kW) | 3.7 | ||
| Machine weight (kg) | 3600 | ||
Outline Dimensions
Technical Specifications
| Press capacity (ton) | 45 | ||
| Stroke (mm) | 20 | 30 | 40 |
| Stroke speed (spm) | 200-700 | 200-600 | 200-500 |
| Shut height (mm) | 215-245 | 210-240 | 205-235 |
| Slide adjustment (mm) | 30 | ||
| Worktable size (bolster) (mm) | 700×550×120 | ||
| Slide area (mm) | 720×450 | ||
| Scrap hole size (mm) | 120×620 | ||
| Main motor (kW) | 5.5 | ||
| Machine weight (kg) | 5600 | ||
Continuously delivers coil metal in precise steps to the press or processing equipment during stamping operations
Used to uncoil and recoil sheet or coil stock, ensuring stable and continuous material feeding
Levels uneven sheet or strip material through upper and lower rollers to achieve the required flatness for accurate stamping
Collects and removes scrap generated during stamping to keep the production line clean and efficient
A Turkish customer, a supplier for Toyota and Honda, uses our DHS-45T straight side press for connector stamping in automotive applications. The client purchased two units in 2024 and was highly satisfied with their performance. Following that success, they added one MDH-30T side press to their production line and are planning to expand further with presses over 100 tons in capacity.
