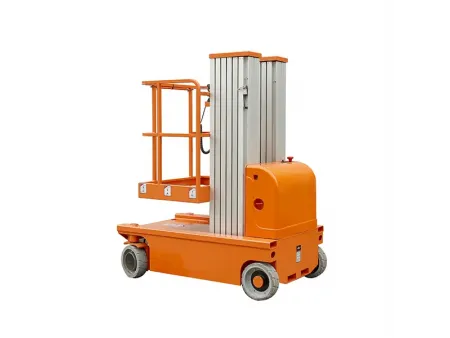

Drivable Vertical Mast Lift (Double Mast)
Request a Quote
FAWP Aerial Work Platform
Self-propelled aluminium alloy aerial lift platform with 150/200kg capacity, up to 10500mm working height
The fully automatic double-mast vertical lift is crafted from high-strength premium aluminum alloy, offering a sleek design, compact size, lightweight construction, and user-friendly operation. Its mobility and balance make it an ideal choice for navigating through standard doorways, elevators, and narrow passageways. Operators can control the platform from both the ground and the lift itself, ensuring convenience and versatility for tasks in factories, hotels, restaurants, stations, airports, cinemas, and exhibition halls.
- 150/200kg
- 10500mm
Specifications
| Model Number | Unit | | |
| Max. Platform Height | mm | 7500 | 9000 |
| Max. Working Height | mm | 9000 | 10500 |
| Min. Platform Height | mm | 680 | 680 |
| Ground Clearance | mm | 20 | 20 |
| Rated Lift Capacity | kg | 200 | 150 |
| Platform Size | mm | 1000×700×1100 | |
| Max. Drive Speed (Platform Stowed) | km/h | 3-4 | |
| Max. Drive Speed (Platform Elevated) | km/h | 0.6-1 | |
| Min. Turning Radius | mm | 1800 | |
| Max. Gradeability | % | 20 | |
| Steering Wheel Size | mm | Ø305×100 | |
| Driving Wheel Size | mm | Ø305×100 | |
| Driving Motor | V/kW | 2×2.4/0.5 | |
| Lifting Motor | V/kW | 24/2.2 | |
| Battery | V/Ah | 2×12/150 | |
| Charger | V/A | 24/25 | |
| Pothole Protection System | / | Mechanical control | |
| Overall Length | mm | 1700 | |
| Overall Width | mm | 1000 | |
| Overall Height | mm | 2080 | 2180 |
| Overall Net Weight | kg | 1100 | 1250 |
Features
- Includes a tilt sensor alarm that alerts operator if the incline angle becomes too steep. The system simultaneously cuts off the lifting and driving power for enhanced safety.
- Features powerful, smooth dual motors that reduce motor speed for extended durability. Two driving speeds ensure quick movement and safe mobility during elevation.
- Pothole protection ensures stability on uneven surfaces, offering peace of mind and reducing operational risks caused by unstable ground.
- Equipped with a buzzer and flashing warning lights to alert surrounding personnel during operation
Applications
The drivable vertical mast lift is a versatile aerial work platform and widely used for:
- Indoor lighting installation and maintenance
- Installation of indoor fire sprinkler systems
- Cleaning and maintenance of glass curtain walls
- Installation and replacement of roof wiring
