Monoslide XQ D3

Request a Quote

Website: http://artificialturfchina.com/1-2-1-fifa-artificial-football-turf-d3.html

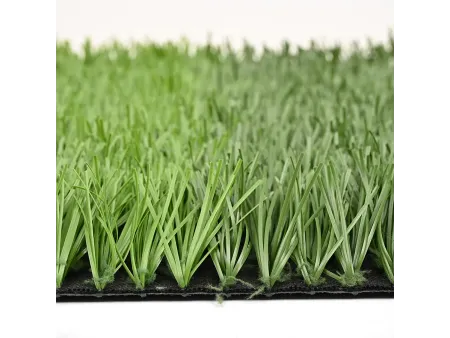

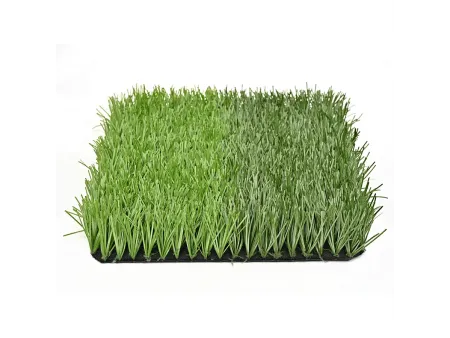

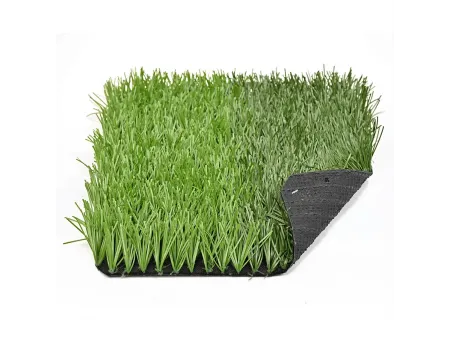

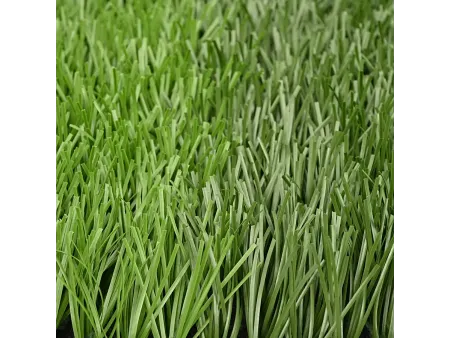

FIFA Approved Artificial Football Turf

Pile Height

50

Density (DTEX)

10000

Backing

UV resistant double PP

Latex Type

SBR latex or PU latex

Yarn Color Options

Field green lime green

Yarn
Yarn type	Monofilament
Yarn material	PE (polyethylene)
Pile height	50 mm
Dtex	10000
Density	12000 stitches
Gauge	5/8 inch
Stitch rate	19 stitches
Backing	UV resistant double PP
Yarn color	Field green lime green

Finished Product
Recommended roll width	4 m
Total weight	2700/2500 g/m²
Product weight (100m² per roll)	290/270 kg
Packaging material	Waterproof PP film

Latex
Latex type	SBR latex or PU latex
Latex weight	1000/800 g/m²

Silica sand
Sand size	0.35-0.85 mm
Mesh size	30-50 mesh
Color	Beige, white

Infill Granules (Optional)

• SBR Granules
  SBR granules are designed to closely mimic the properties of natural rubber but with enhanced features like better abrasion resistance, heat tolerance, and longevity. These granules not only excel in performance but also offer a quicker vulcanization process, making them ideal for diverse applications. Whether for sports fields or other demanding environments, SBR granules provide reliable durability and are a popular choice for projects requiring high-performance materials.
• EPDM Granules
  EPDM granules are known for their low density, making them an excellent choice as a lightweight infill material. Their outstanding shock absorption and compression resistance properties make them ideal for artificial turf systems where safety is a priority. These granules are suitable for environments where the cushioning and safety of the playing surface are critical.
• Thermoplastic Elastomer (TPE) Granules
  TPE granules offer a reliable combination of durability and flexibility, making them a strong choice for artificial turf systems under heavy use. These granules are non-toxic and environmentally friendly, with a broad range of hardness levels available. Their soft texture and excellent resistance to weather, fatigue, and temperature changes contribute to a longer turf lifespan while maintaining a safe and comfortable surface.
