Vertical Universal Friction and Wear Testing Machine
Multi-function tribometer for evaluating friction and wear properties of lubricants, metals, ceramics, coatings and polymers
Standards
- ASTM D-3702-94: Coefficient of friction and wear rate testing with thrust washer methods
- ASTM G-99: Pin-on-disk method for wear and friction analysis
- ASTM D-2266–01: Lubricating oil wear testing using the four-ball method
Applications
Ideal for testing lubricating oils, greases, metals, plastics, coatings, rubber, and ceramics, this testing system is widely used in industries requiring reliable wear and friction data to ensure product durability.

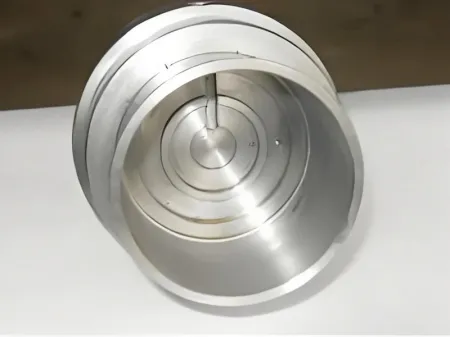

- Stainless steel test oil cup
- Four ball test fixture
- Pin-on-disk fixture
- Ball-on-disk fixture
- Thrust ring fixture

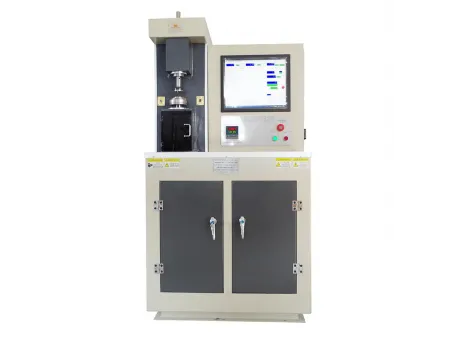

MVF-1A vertical universal friction and wear testing machine operates under a specified contact pressure and supports friction in the form of rolling, sliding, or combined rolling-sliding motions. It features a smooth speed regulation system, allowing tests to be conducted at very low to high speeds.
This machine is designed to evaluate the friction and wear performance of lubricants and materials such as metals, plastics, coatings, rubber, and ceramics. Its capabilities include:
- Low-speed pin-disc friction tests (with options for large and small discs, single or triple pins)
- Long-duration four-ball wear resistance tests
- Four-ball rolling contact fatigue tests
- Ball–bronze three-piece lubrication performance tests
- Tests for thrust washers, ball-disc interactions, slurry wear, and the sealing lip torque and stick-slip friction characteristics of rubber seals.
When paired with a reciprocating module, it can also perform reciprocating friction and wear tests.
This testing machine has broad applications across various tribology fields, including petrochemicals, machinery, energy, metallurgy, aerospace, as well as universities and research institutes. The equipment complies with ASTM standards D-2266, D-3702, D-4172, and G-99.
Technical Specifications
| Max. axial test force | 1000N (stepless adjustable) |
| Relative accuracy of test force | ±2N (below 100N), ±0.5% (above 100N) |
| Load zero point sensitivity | ±1.5N |
| Loading rate of test force | 300N/min (automatically adjustable) |
| Loading method | AC servo (can be set with segmented loading) |
| Relative accuracy of load holding | ±1% |
| Max. friction torque | 2.5N.m |
| Relative accuracy of friction torque | ±2% |
| Friction load sensor | 100N |
| Friction arm distance | 50mm |
| Max. speed | 2000rpm |
| Spindle speed accuracy | ±2r/min |
| Test medium | Oil, water, slurry, abrasive, etc. |
| Heater working temperature range | Room temperature to 260℃ |
| Temperature control accuracy | ±2℃ |
| Friction pair holding method | Backlash-free circumferential holding (imported part patent license) |
| Spindle taper | 1:7 |
| Wear measurement range | 0.00-20.00mm |
| Test time display and control range | 10s-9999min |
| Speed (cycle) display and control range | (1-99)×10⁵ |
| Max. output torque of main motor | 5N.m |
| Dimensions (L×W×H) | 860×740×1560mm |
| Weight | Approximately 550kg |
Features
- Equipped with a servo motor that provides high controllability and a low failure rate
- Combines dual floating bearing, gap-free guidance, and cross-balance buffering technology for accurate, stable measurements while reducing system errors
- Built with a robust frame, including thickened support plates and a high-performance servo motor, reducing the impact of vibration on measurement accuracy
- Features an independent embedded industrial controller and metal touch screen with a specialized analysis module, ensuring reliable operation even during high-speed testing or when vibrations occur
- Proprietary software allows for the creation of test plans tailored to specific standards, enhancing flexibility and precision in testing
- Featuring a modular design, the system allows for interchangeable friction pairs to meet different testing requirements, enabling versatile, multi-functional use in a single machine.
