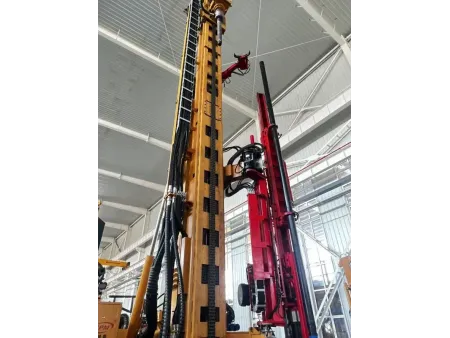

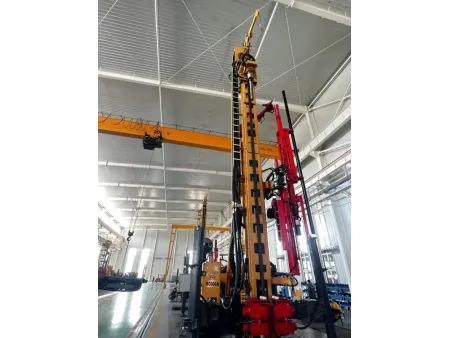

RC800L Reverse Circulation Drilling Rig
Request a Quote
RC drill rigs for drilling depths up to 600m with 105-550mm hole diameters
The reverse circulation drilling rig supports a maximum drilling depth of 600 m and can operate in F4-F22 formations.
It is equipped with a 179 kW engine and a high-torque power head (18,000 N•m).
The rig features hydraulically driven crawler travel, powerful feed and lifting capabilities, and supports high-pressure, high-volume DTH reverse circulation cuttings removal.
It is suitable for deep-hole drilling and hard rock formations, providing stable operation with easy maintenance.
Technical Parameters
Basic Parameters
| Parameter | Specifications |
| Product model | RC800L |
| Working air pressure and air volume | Pressure: 1.6-8MPa; Air volume: 16-96m³/min (DTH hammer drilling) |
| Rock hardness | F4-F22 |
| Drill hole diameter, mm | Ø105-Ø550 |
| Drilling depth, m | 600 |
| Drill pipe length, m | 6 |
| Drill pipe diameter, mm | Ø114/Ø127 |
| Drilling angle, ° | 45-90 |
| Max. propulsion force, kN | 110 |
| Max. lifting force, kN | 470 |
| Power head torque, N·m | 18000/9000 |
| Rotary speed, rpm | 0-70 (adjustable) / 0-140 (adjustable) |
| Traveling type | Tracked |
| Machine noise, dB | 85-90 |
| Transmission mode | Hydraulically driven |
| Equipped DTH hammer | RC45 / RC55 / SPM |
| Overall dimensions (L x W x H), mm | 10500x2250x3300 (subject to design) |
| Weight, kg | Approx. 17000 (subject to design) |
Component Parameters
| Power head | Manufacturer | SPM |
| Max. output torque, N·m | 18000 | |
| Output speed (continuous operation), rpm | 0-70 (adjustable) / 0-140 (adjustable) | |
| Rotary acceleration output speed (intermittent operation), rpm | 140 | |
| Max. lifting force, kN | 470 | |
| Max. propulsion force, kN | 110 | |
| Engine | Product model | 6CTA8.3-C240 |
| Manufacturer | Cummins | |
| Power, kW | 179kW | |
| Rated speed, r/min | 2200 | |
| Cooling method | Water cooling | |
| Displacement, L | 8.3 | |
| Fuel tank volume, L | 200 | |
| Oil pump | Model | L8V107 |
| Manufacturer | AVIC Liyuan | |
| Oil pump displacement, L/min | 192 192 at 1800rpm | |
| Max. pressure, MPa | 30 30 | |
| Hydraulic oil tank volume, L | 350 | |
| Max. operating temperature, °C | 75 | |
| Auxiliary winch | Single-rope lifting force, kN | 25 |
| Wire rope diameter, mm | Ø11 | |
| Wire rope length, m | 60 | |
| Chassis | Traveling speed, km/h | 5 |
| Gradeability, ° | 21 | |
| Mast | Drilling angle, ° | 45-90 |
| Feed stroke, mm | 6760 | |
| Mast sliding stroke, mm | 1700 |
