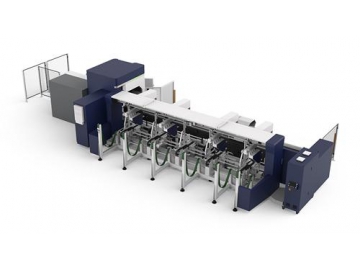

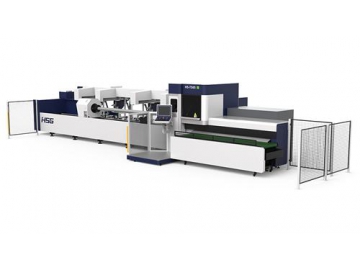

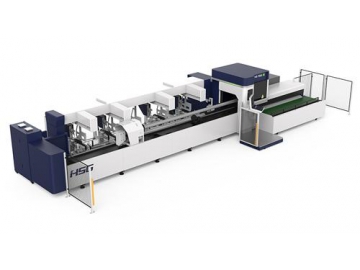

TS65 Fully Automatic Fiber Laser Tube Cutting Machine

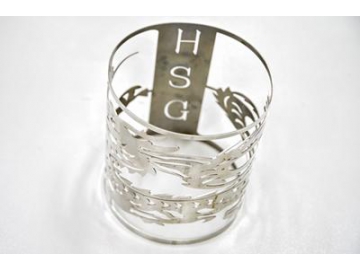

With an automatic typesetting function, the TS65 fully automatic fiber laser tube cutting machine can make arbitrary and intricate curvilinear figure without limits on pattern complicities.
The TS65 fully automatic laser tube cutter carries out the efficient cutting and punching of the metal square tubes, circular tubes and other tubes with various shapes. The cutting speed of this machine reaches up to 120m/min and its maximum accelerated speed can reach 1.2g.
Applicable materials: Stainless steel, carbon steel, aluminum, brass, copper, galvanized plate, cold-rolled sheets and more.

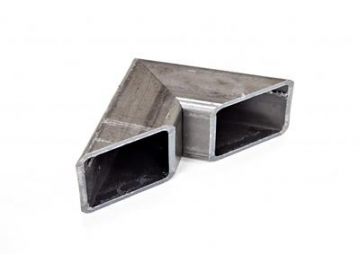

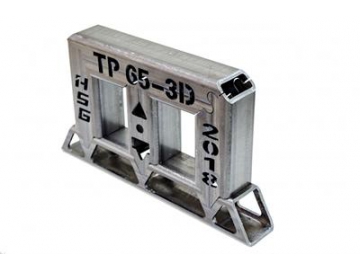

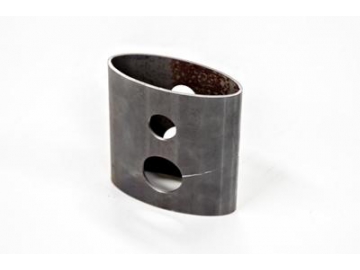

Applicable materials: Square, circular, rectangular, oval, and special shapes such as a D shape and hexagon tube.
Application industry: This tube laser cutter is used for external processing of metal sheets, kitchenware, furniture, lighting, gym equipment, automobile manufacturing and more.
| Laser wavelength | 1070-1080mm |
| Laser Power | 2000W-4000W |
| Max. Cutting Speed | 120m/min |
| Max. accelerated | 1.2G |
| X/Y Positioning Accuracy | 0.03mm/m |
| X/Y Repeated Positioning Accuracy | ±0.03mm |
| Power supply | 380V 50Hz |
| Machine loading weight | 3000Kg |
| Machine dimensions | 12000×3500×2800mm |
* We offer lasers in various power levels. The materials and thicknesses to be cut directly depend on the laser power.
- Stainless steel
- Carbon steel
- Brass
- Copper
- Aluminum
- Galvanized steel
- Cold rolled steel
- Titanium
- Electrolytic steel
- Silicon steel

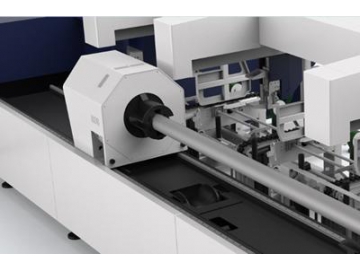

- Pneumatic chuckThe fully automatic pneumatic chuck not only centers and clamps work pieces quickly, but also guarantees the stable holding force through pressure adjustment. Because of this, the clamping process is done with no damage to the pipe. There is no deformation to the pipes, even those that have thin walls.
-

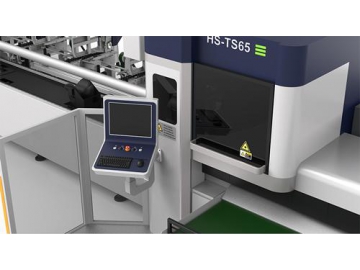

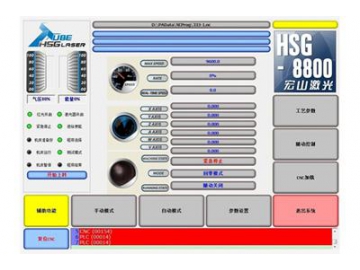

- Operation systemThe HSG8800 operation software is a professional operation software researched and developed independently by our company for fiber laser cutters in order to facilitate easier operation.
-

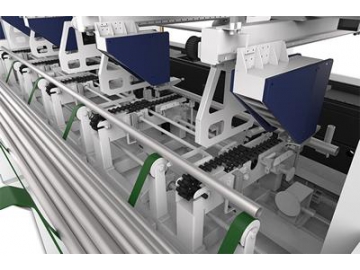

- Automatic tube bundle loading and unloading systemThe automatic loading and unloading system is controlled using a numerical control system to feed the pipes. The loading device will clamp a single pipe from the bundle, and send it forward to be inspected. This decreases the cost of manually delivery materials, as it can also load pipe bundles and straightly connect with the pipe cutting process.
-
