TM65 Fully Automatic Fiber Laser Tube Cutting Machine

Request a Quote

View All: http://lasercutter-engraver.com/1-3-3-enclosed-sheet-tube-fiber-laser-cutting-machine-rj-3015pt.html

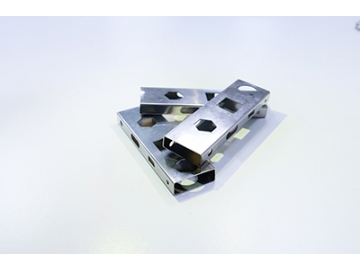

TM65 fully automatic fiber laser tube cutting machine is designed for small tube cutting of which the cutting range is around 10mm. The design of mechanical structure adopts integrated measurement, which ensures stable and smooth operating performance.

Video

Features

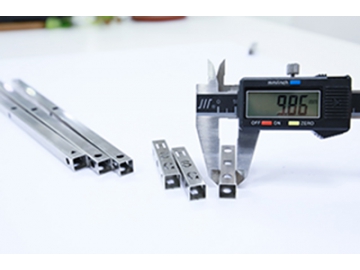

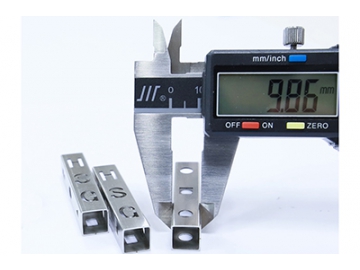

Cutting capacity

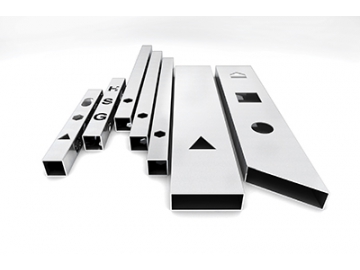

Square tubes: 10*10-70*70mm
Round tubes: Φ10-Φ100mm

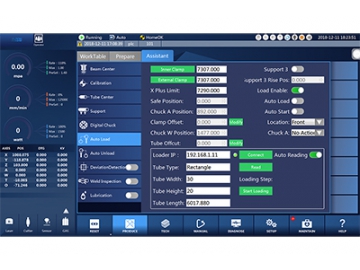

HSGX9000 professional tube laser cutting software which is designed on the base of the German NC system can realize easy operation and simple parameter control with basic training.

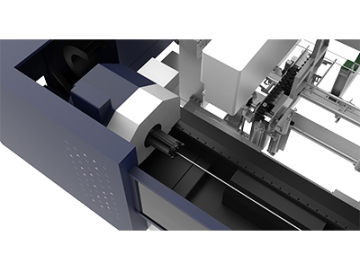

Fully digital controlled pneumatic chuck features quick clamping and high clamping precision so that it can improve work efficiency and ensure long service life. It is also highly safe and reliable.

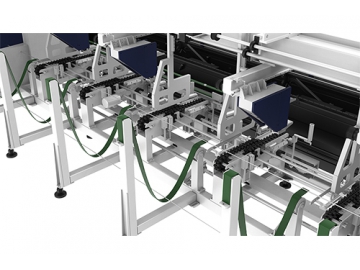

TM65 fully automatic fiber laser tube cutting machine is equipped with highly efficient automatic feeding system which can realize max tube utilization. The length of tube to be cut is automatically calculated by the controller. And it can also find the best cutting sequence. Because of the supporting of roller, the tube to be cut will not fall to the ground when reaching the feeding line or conveyor.

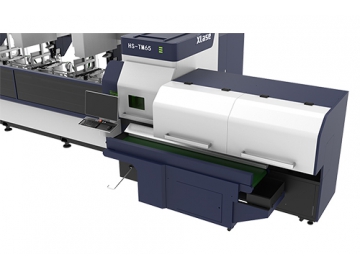

The loading capacity of highly efficient automatic loading and unloading system can be up to 1.5 tons. unloading conveyor conveying device after tube cutting, and unloading material blocking device sorting material according to the length of the tube.

Parameters

Optical maser wavelength	1070-1080mm
Laser energy	500W-2000W
Max. moving speed	140m/min
Max. accelerated speed	1.2G
Positioning accuracy	±0.03mm/m
Repositioning accuracy	±0.03mm
Whole machine weight	8000Kg
Machine dimensions	1200024502400mm
