DTB

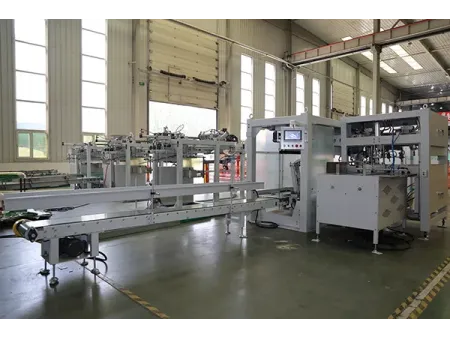

Fully automatic open-mouth bagger for filling granular and powder products into pre-made open-mouth bags
The DTB automatic bagging machine is designed for flexible use across a wide range of bag materials, including laminated woven bags, kraft paper bags, heavy-duty PE film bags, and envelope-style bags. Its structure supports high-speed production with a capacity of up to 800 bags per hour, making it suitable for plants that need both speed and stable performance.
The system uses a stack-type bag magazine equipped with vacuum detection and low-bag alarms, ensuring steady bag supply without jamming. A full negative-pressure monitoring setup helps identify bag defects early; if a bag does not meet requirements, the system rejects it automatically. If a bag is not clamped correctly, the weighing scale will not release material, preventing spills and ensuring clean, controlled filling. The bag-holding trolley is reinforced and driven by a servo motor for precise motion control. This design keeps the bag mouth straight throughout the process, supporting smooth filling, clean transfer, and reliable downstream sealing.
| Model | | | |
| Machine dimensions (L×W×H) | 3100×3000×2700mm (excluding upright bag conveyor and weighing scale) | 3000×3000×2500mm (excluding upright bag conveyor and weighing scale) | 3100×3000×2700mm (excluding upright bag conveyor and weighing scale) |
| Applicable bag materials | Woven bags, PE bags | Woven bag | Woven bags, PE bags |
| Applicable bag styles | Flat-top bags, M-gusset bags | Flat-top bags | Flat-top bags, M-gusset bags |
| Optional closing methods | Folding sewing, heat sealing Inner heat sealing folding sewing | Folding sewing | Folding sewing, heat sealing Inner heat sealing folding sewing |
| Applicable bag size | Length 700-1000 mm Width 500-650mm | Length 800-1100 mm Width 500-700mm | Length 700-1000 mm Width 500-650mm |
| Bag magazine capacity | 200 | 200 | 200 |
| Filling range | 20-50kg/bag | 20-50kg/bag | 20-50kg/bag |
| Capacity | 500-800 bags/hr (depending on material flow and bulk density) | 400-600 bags/hr (depending on material flow and bulk density) | 400-600 bags/hr (depending on material flow and bulk density) |
| Power supply | AC 220V/380V ±5%, 50 Hz±1%, three-phase four-wire | ||
| Peak power | 15kW | 15kW | 15kW |
| Air supply | 0.5–0.7MPa, 140Nm³/hr, inlet pipe diameter 1inch | ||
| Operating temperature | –5°C to 40°C, dew point –40°C | ||
| Vacuum system | Integrated rotary-vane vacuum pump | ||
Specifications are subject to change without prior notice.
Product images may differ from the actual model configuration.
- This open-mouth bagger works with a wide range of bag types, including laminated woven bags, kraft paper bags, envelope-style bags, and heavy-duty PE film bags. The mechanical system supports up to 800 cycles per hour, allowing stable and efficient operation.

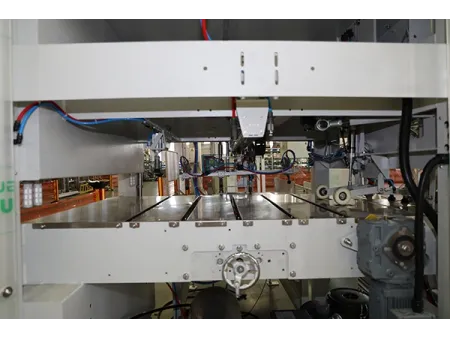

- The stacked bag magazine is equipped with a vacuum-detection system and a no-bag alarm to keep bag feeding smooth and uninterrupted. A negative-pressure monitoring system runs throughout the process to identify bag defects in real time. If a bag fails quality checks, the bagging machine automatically rejects it; if the bag is not firmly clamped, the weighing scale will not release material.
