3kW Fiber Laser Cutting Head
Laser Cutting System Components
Laser cutting heads engineered for precision, efficiency, and performance at every power level

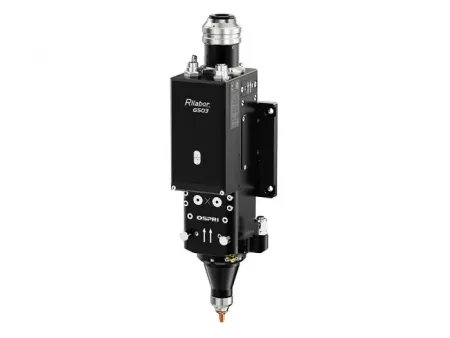

GS03C
Auto focus laser cutting head for processing thin metal sheets and metal tubes with power ratings of up to 3kW
Our 3kW fiber laser cutting heads are designed for thin-sheet and tube cutting. They are lightweight and compact, work with multi-axis setups, and deliver fast, accurate positioning. The front-mounted drive lowers the installation height. A drawer-style lens module makes replacement quick, and the unitized design helps extend service life.
| Type | Auto Focus Fiber Laser Cutting Head |
| Model | GS03C |
| Interface Type | QBH |
| Wavelength | 1080nm±10nm |
| Rated Power | ≤3kW |
| Focal Length | 125mm/150mm/200mm |
| Collimation Length | 100mm |
| Focusing Range | -18mm~ 15mm(F150) |
| Centering Adjustment Range | ±1.5mm |
| Focusing Speed | 100mm/s |
| Auxiliary Gas Pressure | ≤3MPa |
| Weight | 3.3kg |
These auto-focus laser cutting heads are built to run with 3 kW fiber-laser cutting machines, both flatbed sheet cutters and tube cutting lines for bevel cutting. They process carbon steel, stainless steel, and aluminum alloys for thin-sheet and tube work with consistent quality.
- Flat Sheet Laser Cutting
- Profile Laser Cutting
Thanks to its low-inertia body (about 3.3 kg) suits multi-axis motion, reduces motor load, and enables fast, accurate positioning.
Placing the drive up front shortens the distance from the mounting face to the beam axis. On tube/profile cutting machines this reduces remnant length and saves material.
Drawer type (pull out) lens modules allow quick removal and reinstallation, which shortens downtime.
Compliant, spring-loaded anti-collision design shields the sensor cavity (sensor bay), prevents damage in minor impacts, and allows a quick restart.
Connector ports can be rotated to suit different cutting machine layouts, making installation and cable routing easier.
Whether you need a laser head built to your specifications or guidance on choosing the right solution, our team is here to help.
