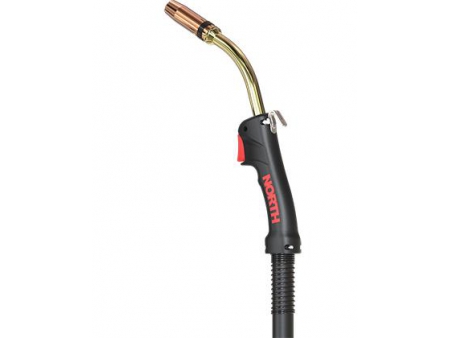

NW-24, MIG/MAG Welding Gun
Request a Quote
Technical Data
Cooling Method: Water-Cooled
Rating: C02: 300A
Rating: Mixed Gas: 270A
Duty Cycle: 100%
Wire Size: 0.8-1.2
Model
| EURO FITTING | 3M | NW24-3 |
| 4M | NW24-4 | |
| 5M | NW24-5 |

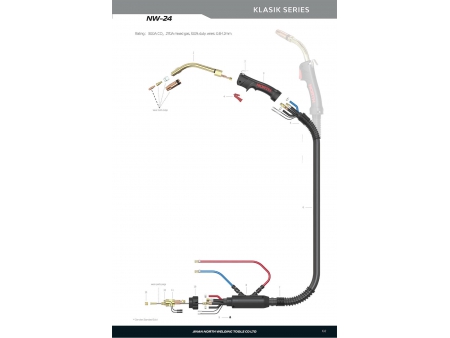

Components
| No. | Part Number | Description |
| 1 | SF2245 | Swan Neck 45° |
| 2 | EG0001 | Hanger Hook |
| 3 | EH0101 | Handle |
| 4 | EJ0003 | Trigger |
| 5 | ES0102 | Front Cable Support Spring |
| 6 | SL5030 | Cable Assembly 3m |
| 7 | HDS0202 | Back Cable Support Spring |
| 8 | HDH0202 | Back Handle |
| 9 | Q210406 | Screw M4x6 |
| 10 | EP3001 | Gun Plug Nut |
| 11 | TRU5001 | Euro Gun Plug,Water Cooled |
| 12 | Q504010 | O-ring 4x1 |
| 13 | EU1011 | Nut M10x1 |
