Single Fiber/Dual Fiber Insertion Loss & Return Loss Meter
Request a Quote
JW8301/JW8302
Fiber optic test platform for measuring insertion loss and return loss of simplex and duplex fiber optic cables
This loss meter is designed for testing insertion loss (IL) and return loss (RL) of passive optical components, including CWDM devices, multi-wavelength components, PLC splitters, and fiber optic jumpers. It features integrated red light or 850nm multimode light source functionality and supports various advanced capabilities, such as pedal switch, threshold determination, automatic multi-wavelength detection, system integration, and integration with PC software for advanced customization, enabling secondary development for tailored testing workflows and system integration.
Features
- Supports 2, 3, and 4-wavelength IL/RL testing
- Includes either a 650nm red light source or an 850nm multimode light source
- Automatic multi-wavelength testing and display
- Simultaneous testing of multiple selected wavelengths
- High-precision optical power meter mode with a test range of 3dBm to -75dBm

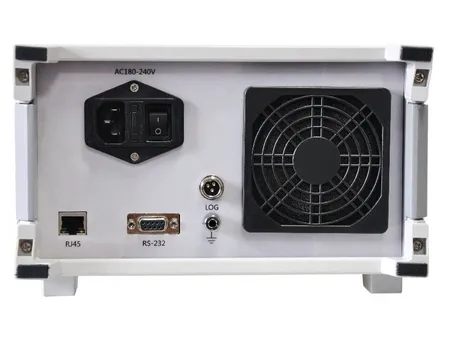

- USB and RS232 connectivity to meet diverse requirements
- Comprehensive threshold settings and alarm functions
- Optional integrating sphere configuration for the optical power meter
- External probe configuration available for testing bare fiber clamps
- Supports polarity sequence testing
- Simultaneous testing of duplex LC cables or cables with different interfaces
- Pedal switch for data upload
- Multiple operating modes, including OPM (Optical Power Meter), IL (Insertion Loss), RL (Return Loss), IL2 (Dual-Wavelength Insertion Loss), and ILRL (Combined IL and RL Mode)
Specifications

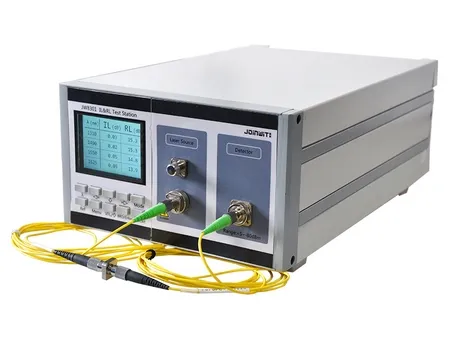

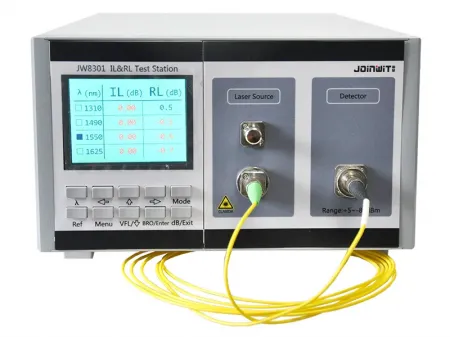

JW8301
Single Fiber Insertion Loss and Return Loss Meter
Single Fiber Insertion Loss and Return Loss Meter

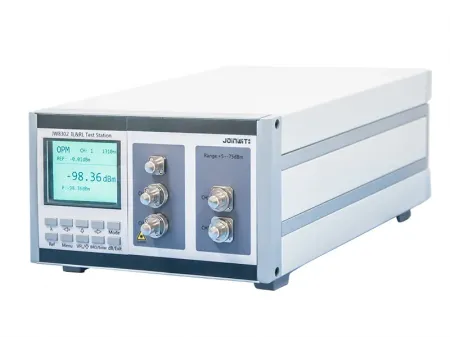

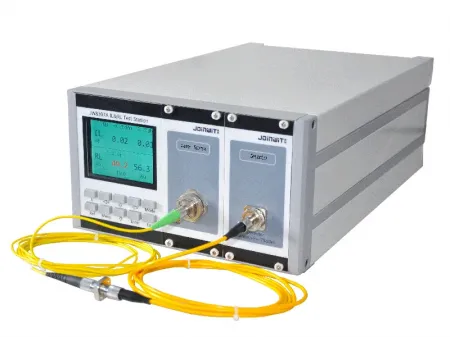

JW8302
Dual Fiber Insertion Loss and Return Loss Meter
Dual Fiber Insertion Loss and Return Loss Meter
| Model | | |
| Optical Power Meter (OPM) | ||
| Detector Type | Indium Gallium Arsenide (InGaAs) | |
| Detector Size | Ø2.0mm | |
| Wavelength Measurement Range | 850 to 1700nm | |
| Power Measurement Range | 3dBm to -75dBm (built-in optical power meter) 10dBm to -55dBm (integrating sphere) 5dBm to -55dBm (external probe) | |
| Linearity (built-in) | ±0.04dB ( 5 to -55dBm) ±0.08dB (-55 to -65dBm) ±0.2dB (-65 to -75dBm) | |
| Fiber Type | Standard single-mode optical fiber and multimode optical fiber | |
| Total Uncertainty | ±5% | |
| Optical Light Source (OLS) | ||
| Single Mode | Multimode | |
| Optical Wavelength | 1310/1550nm | 850/1300nm |
| Source Type | FP Laser | LED |
| Return Loss Measurement Range | 12 to 75dB | 12 to 50dB |
| Return Loss Measurement Accuracy | 1dB (12 to 55dB) | 1dB (12 to 35dB) |
| Center Wavelength | ±10nm | ±30nm |
| Encircled Flux Standard | Unconcerned | Meet IEC-61280-4-1 standards (optional) | Insertion Loss Uncertainty | ±0.05dB | ±0.1dB |
| Insertion Loss Stability | ±0.01dB | ±0.03dB |
| Output Power | ＞ -5 dBm | ＞-27 dBm |
| Source Stability | 0.01dB/15min | 0.01dB/15min |
| 0.03dB/8hour | 0.05dB /8hour | |
| Fiber Core | 9/125 | 50/125 or 62.5/125 |
| Optical Connector Type | FC/APC | |
| Red Light Source | Support 1 channel 650nm 1mW red light | |
| General | ||
| Power Supply | 220VAC50Hz | |
| Warm-up Time | 5 to 15 minutes | |
| Communication Interface | RS232 | |
| Operating Temperature | 10 to 40℃ | |
| Storage Temperature | -15 to 70℃ | |
| Weight | < 5kg | |
| Dimensions | 3U×235×380mm | |
