Freestanding Operator Console Enclosure (Piano Type Enclosure)
Electrical Enclosures
The cabinet is made of 304 stainless steel, precisely formed through advanced bending and welding processes, providing a durable and rigid structure. The piano-style design offers an ergonomic operating surface, making it easy for operators to monitor and control equipment. The rear access door simplifies maintenance and inspection operations.

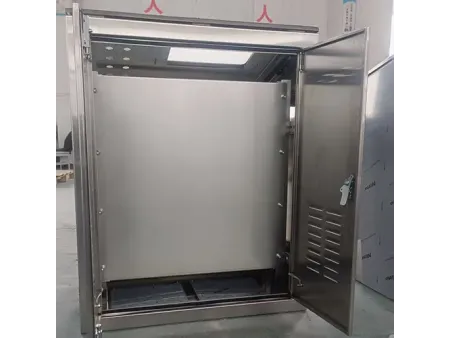

- The front door and control panel can both be opened for easy installation and maintenance.

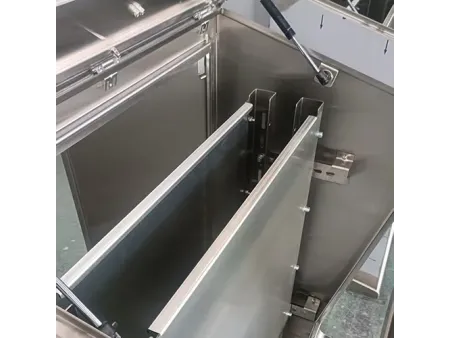

- Equipped with upper and lower mounting plates, ensuring convenient assembly and component installation.
- The inner sides of the door and control panel are fitted with welded mounting strips and pre-drilled holes (M4/M5 compatible) for flexible arrangement of accessories and organized cable management.
- The grooved waterproof edges work together with a polyurethane foamed sealing strip, ensuring IP54-rated protection against dust and water ingress.
| Model | Dimensions | Model | Dimensions | ||||
| H (mm) | W (mm) | D (mm) | H (mm) | W (mm) | D (mm) | ||
| | 1000 | 600 | 500-1000 | | 1200 | 1000 | 500-1000 |
| | 1000 | 800 | 500-1000 | | 1200 | 1200 | 500-1000 |
| | 1000 | 1000 | 500-1000 | | 1400 | 600 | 500-1000 |
| | 1000 | 1200 | 500-1000 | | 1400 | 800 | 500-1000 |
| | 1200 | 600 | 500-1000 | | 1400 | 1000 | 500-1000 |
| | 1200 | 800 | 500-1000 | | 1400 | 1200 | 500-1000 |
- One galvanized mounting plate
- Front double doors with rear panel (600 mm width models feature a single front door)
- Top cover support
- Material: Stainless steel, with optional carbon steel available
- Door Thickness: 2.0 mm
- Cabinet Body Thickness: 1.5 mm
- Mounting Plate Thickness: 2.5 mm (galvanized steel)
What material is used for the cabinet, and how durable is it in harsh industrial environments?
The cabinet can be made of 304 stainless steel or high-quality cold-rolled steel, both of which undergo a strict anti-corrosion treatment. This ensures excellent resistance to rust and corrosion, allowing long-term stable performance even in demanding industrial conditions.
What is the protection level of this console cabinet? Does it effectively prevent dust and water ingress?
Some models reach a protection level of IP54 or higher, effectively preventing dust intrusion and resisting water spray, ensuring that internal electrical components operate reliably in dusty or humid environments.
How is the internal layout designed? Is it compatible with different international electrical component brands?
The internal layout is well-structured and spacious, providing standardized mounting positions that are compatible with international brands such as Siemens and Schneider, meeting various wiring and installation requirements.
Can customization be provided for this console cabinet, such as specific sizes, layouts, or functions?
Yes. Comprehensive customization services are available, allowing you to specify the dimensions, internal layout, and functional modules of the console cabinet to suit your particular application needs.
