Observation Elevator
Observation elevators feature a transparent car design that provides breathtaking views. They use high-security laminated glass, and the interlayer in the laminated glass has radiation protection function, which buffers sound waves and achieves soundproofing effects. With superior performance, these elevators provide perfect transportation for sightseeing.
- Load capacity
450kg, 630kg, 800kg, 1000kg, 1250kg, 1350kg, 1600kg, 1800kg, 2000kg
- Speed
1.0m/s, 1.5m/s, 1.75m/s, 2.0m/s, 2.5m/s, 3.0m/s, 4.0m/s, 6.0m/s
- Stops
2 to 106
- Persons
1 to 26
- Machine room
small machine room or machine room-less
- Features
- Models

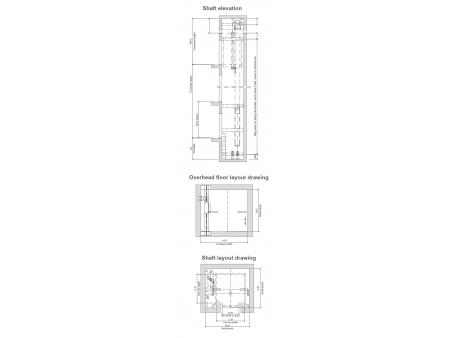

- Dimensions
- Intelligent Control System
When the elevator accelerates, decelerates, and brakes, it operates more stably, providing outstanding ride comfort.
- FUJI digital variable frequency technology: smooth start, fast and quiet movement
FUJI VVVF drive ensures smoother operation. Good noise control provides passengers with a peaceful riding experience.
- High-precision positioning control system
FUJI elevator system's car displacement tracking technology ensures high-precision, safe and perfect leveling between the car and the landing level.

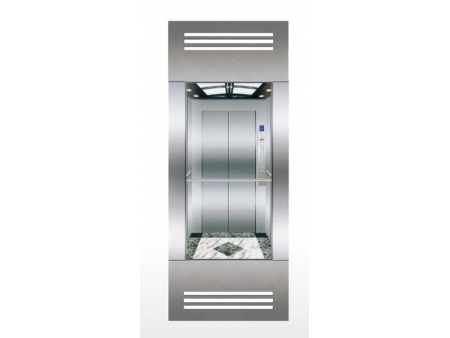

FJ-GA01 Observation Elevator
- Upper and bottom shell: Mirror stainless steel
- Windows: Safety laminated glass, mirror stainless steel
- Ceiling: Mirror stainless steel, acrylic top panel
- Car door: Framed glass door
- Handrail: Stainless steel pipe handrail
- Flooring: Standard PVC (optional marble)

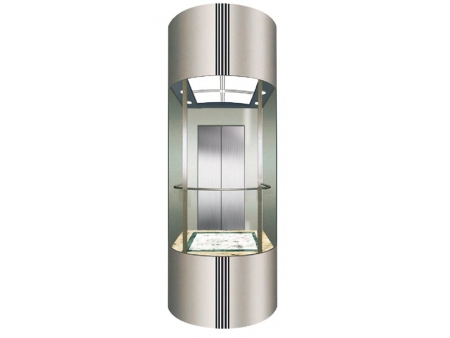

HD-GA01 Observation Elevator
- Upper and bottom shell: Silver painted steel plate
- Windows: Curved laminated safety glass
- Ceiling: Steel plate painted frame, acrylic diffuser
- Car wall/car door: Hairline stainless steel
- Handrail: Stainless steel floor-mounted handrail
- Flooring: Standard PVC (optional marble)

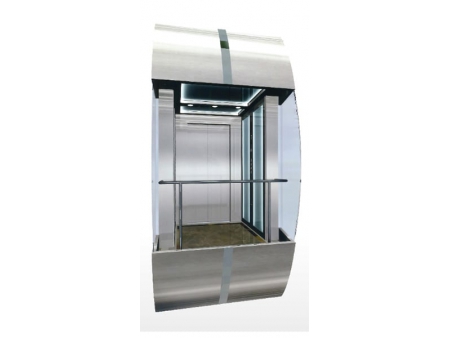

HD-GA02 Observation Elevator
- Upper and bottom shell: Painted steel plate
- Windows: Curved laminated safety glass
- Ceiling: Hairline stainless steel, acrylic diffuser
- Car wall/car door: Hairline stainless steel
- Handrail: Double stainless steel tube handrail
- Flooring: Standard PVC (optional marble)
HD-GA03 Observation Elevator
- Upper and bottom shell: Mirror stainless steel embossed trim surround, red acrylic decorative cover
- Windows: Curved laminated safety glass
- Ceiling: Hairline stainless steel, with lighting through circular, milky white acrylic plate
- Car wall/car door: Hairline stainless steel
- Handrail: Double stainless steel tube handrail
- Flooring: Standard PVC (optional marble)
FJ-GA10 Observation Elevator
- Upper and bottom shell: Milky white acrylic
- Windows: Curved laminated safety glass
- Ceiling: Hairline stainless steel, mirror stainless steel, central lighting fixture
- Car wall: Hairline stainless steel
- Car door: Framed glass door
- Handrail: Stainless steel tube handrail
- Flooring: Standard PVC (optional marble)

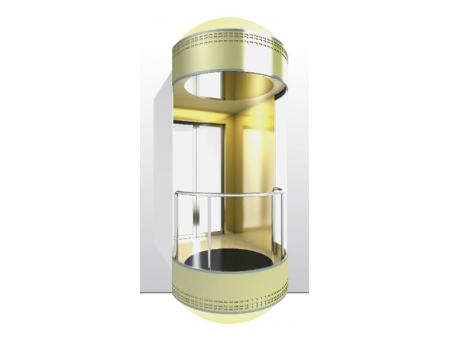

FJ-GA02 Observation Elevator
- Upper and bottom shell: Titanium gold mirror stainless steel
- Windows: Curved laminated safety glass
- Ceiling: Titanium gold mirror stainless steel, central lighting fixture
- Car wall/car door: Titanium gold mirror stainless steel
- Handrail: Titanium gold stainless steel
- Flooring: Standard PVC (optional marble)
FJ-GA04 Observation Elevator
- Upper and bottom shell: Hairline stainless steel, mirror stainless steel
- Windows: Laminated safety glass
- Ceiling: Stainless steel frame, central lighting fixture
- Car wall: Mirror stainless steel frame, frosted glass
- Car door: Hairline stainless steel
- Handrail: Stainless steel round tube handrail
- Flooring: Standard PVC (optional marble)

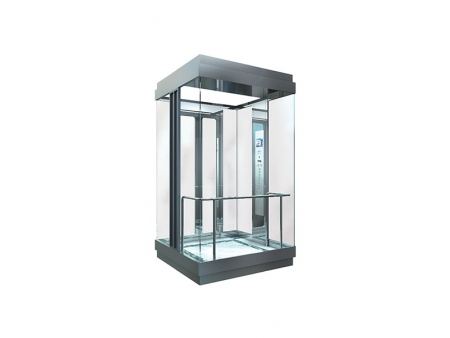

FJ-GA06 Observation Elevator
- Upper and bottom shell: Painted steel plate
- Windows: Laminated safety glass
- Ceiling: Mirror stainless steel frame, acrylic diffuser, downlights
- Car wall/car door: Hairline stainless steel
- Handrail: Stainless steel round tube handrail
- Flooring: Standard PVC (optional marble)
| Persons | Rated capacity (kg) | Rated speed (m/s) | Car size (mm) | Door size (mm) 2P Central opening | Shaft size (mm) | ||
| C.W×C.D× D.H | D.W×D.H | H.W× H.D | HR.H | Pit | |||
| 6 | 450 | 1.0 | 1100×1100×2300 | 800×2100 | 2050×1850 | 4200 | 1500 |
| 8 | 630 | 1.0 | 1400×1100×2300 | 800×2100 | 2250×1900 | 4200 | 1500 |
| 1.5/1.75 | 4400 | 1600 | |||||
| 10 | 800 | 1.0 | 1400×1350×2300 | 800×2100 | 2250×1950 | 4200 | 1500 |
| 1.5/1.75 | 4400 | 1600 | |||||
| 2.0 | 4800 | 1800 | |||||
| 2.5 | 2000 | ||||||
| 13 | 1000 | 1.0 | 1500×1550×2300 | 900×2100 | 2350×2150 | 4200 | 1500 |
| 1.5/1.75 | 4400 | 1600 | |||||
| 2.0 | 4800 | 1800 | |||||
| 2.5 | 4800 | 2000 | |||||
| 21 | 1600 | 1.0 | 1900×1800×2300 | 1100×2100 | 2850×2400 | 4500 | 1500 |
| 1.5/1.75 | 4700 | 1600 | |||||
| 2.0 | 4900 | 1800 | |||||
| 2.5 | 5100 | 2000 | |||||
| 3.0 | 1900×1800×2800 | 3150×2400 | 5200 | 2600 | |||
| 4.0 | 6000 | 4900 | |||||
| 26 | 2000 | 1.0 | 1900×2200×2300 | 1100×2100 | 2900×2600 | 4500 | 1500 |
| 1.5/1.75 | 4700 | 1600 | |||||
| 2.0 | 4900 | 1800 | |||||
| 3.0 | 1900×2200×2800 | 3150×2700 | 5200 | 2600 | |||
| 4.0 | 6000 | 4900 | |||||
Signal system, Ceiling series, Landing door series, We have different styles for you to choose
What do you call an observation elevator?
An observation elevator is a unique transparent elevator that provides passengers not only with vertical transportation but also with a pleasant visual experience.
Which buildings should observation elevator apply to?
Observation elevators are typically installed in high-rise buildings such as shopping malls, hotels, and office buildings, allowing passengers to enjoy the indoor scenery during the ascent or descent.
What types of observation elevators are there?
Common types of observation elevators include single-direction observation elevators (featuring a glass design with a single directional view), panoramic observation elevators, and semi-panoramic observation elevators.
What is the difference between an escalator and an elevator?
Elevators, or lifts, transport passengers and goods vertically.
Escalators are moving staircases that transport people from one level of a building to another, either going up or down.
Moving sidewalks are long-distance conveyors that can be horizontal or slightly inclined, primarily used in airports and large train stations.
What are the components of the elevator system?
Generally, the elevator system consists of an elevator machine room, elevator shaft, elevator car, elevator guide rails, elevator door system, elevator control system, safety system, and other components.
How reliable is FUJI elevator system?
FUJI has over thirty years of experience in the elevator industry and is one of the pioneer elevator manufacturers in China. Our elevators are equipped with intelligent control systems, digital frequency conversion technology, permanent magnet synchronous motor technology, high-precision positioning control systems, and more, ensuring the safety of the elevator system.
