Powder Filling Line
Request a Quote
Inline powder filling equipment and packaging machinery
Our powder filling and packaging line boasts highly accurate and efficient filling performance and applicability to a wide range of industries such as food, cosmetics, pharmaceuticals.
-
- Filling range:
- 10-5000g
-
- Filling speed:
- High speed: 30-55bpm
-
- Packing speed:
- 25-60bags/min
Applications
- Food: Filling and packaging of flour, powdered sugar, ground coffee, etc.
- Cosmetics: Filling and packaging of foundation, eye shadow and loose powder, etc.
- Pharmaceuticals: Filling and packaging of powder, dosage forms, etc.

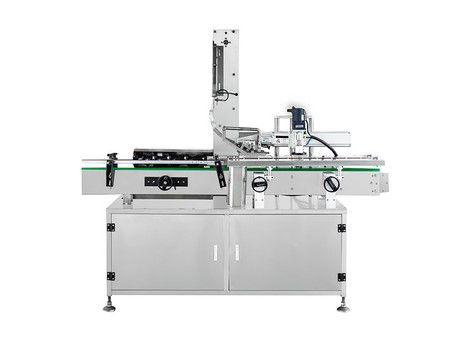

Configurations of Filling Line
The filling line can be configured flexibly according to the specific properties of the products and your parameter preferences.
Features
- A stainless steel exterior, with a structure designed to meet the hygienic standards of food and pharmaceutical industries.
- A transparent and reliable production process, aligned with Good Manufacturing Practices (GMP).
- Three selectable modes for adjustable filling speeds, catering to various production demands.
Specifications
| Metering device | Auger filler | Weight feedback & tracking device |
| Bag size | Width: 80-200mm | Width: 100-250mm |
| Length: 100-300mm | Length: 100-350mm | |
| Filling range | 10-5000g | 10-5000g |
| Filling speed | Low speed: 5-10bpm | |
| Medium speed: 15-25bpm | ||
| High speed: 30-55bpm | ||
| Packing accuracy | ≤1% | |
| Packing speed | 25-60bags/min | |
| Power supply | Three phase 380/220V, 50-60Hz | |
| Power | 6kW | |
| Air pressure | 6-8kg/cm² | |
| Air consumption | 0.2m³/min | |
| Machine weight | 700kg | 950kg |
| Dimensions | 1300×1500×2600mm | |
