Application
SVG static synchronous compensator is commonly applied to low voltage distribution systems, which is featured as low power factor, large harmonic current and unsteady load. This compensation equipment can eliminate harmonics and realize static reactive compensation, which has a widespread use in frequency conversion equipment, soft starter, uninterruptible power supply and other electrical equipment with large harmonic current and reactive load.
| Model | |||||||||
| Rated current | 100A | 150A | 200A | 250A | 300A | 350A | 400A | 450A | 500A |
| External dimension (L*W*H) mm | 600*800*2200 800*800*2200 800*1000*2200 | 800*1000*2200 1000*1000*2200 | |||||||
| voltage | 400/690V | ||||||||
| Wiring mode | three phase three wire or three phase four wire | ||||||||
| Rated frequency | 50 Hz, 60 Hz (1±2%) | ||||||||
| Compensation way | Single phase, three phase three wire(3L) | ||||||||
| Compensation degree | In the range of equipment output capacity, to achieve the set requirements | ||||||||
| Reactive power compensation | 0.98≦PF< 1 | ||||||||
| Compensation way | reactive compensation, Harmonic compensation | ||||||||
| Response time | < 1ms | ||||||||
| Overload protection | Automatic limit to rated current output | ||||||||
| Overall power consumption | < 3% | ||||||||
| Noisy | < 65dB(A) | ||||||||
| Working temperature | -25℃～45℃ | ||||||||
| Storage temperature | -20℃～65℃ | ||||||||
| Relative humidity | < 90%(25℃) | ||||||||
| Work pattern | Automatic continuous work | ||||||||
| Communication interface | Remote RS485/RS232/ Ethernet communication function (optional); PC communication software (optional) | ||||||||

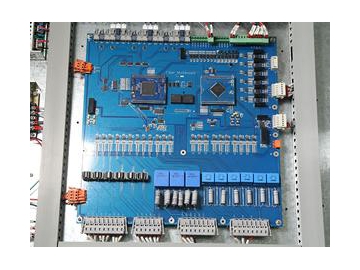

| Operation display | LED control panel; operation parameter setting; touch button operation; multi parameter display | ||||||||
| Display accuracy | Current±5%FS | ||||||||
| Expansion capability | N set in parallel，professional advice up to 10 set. | ||||||||
| Protection | Input under-voltage, lacking input phase, over-current, overheating, DC bus under voltage, overload automatic current limit protection | ||||||||
| Installation requirements | Installation point without violent vibration, no conductive and explosive dust, no corrosive gas, no more than 5 degrees slope angle. | ||||||||
| IP grade | Ip20(higher protection level can be customized) | ||||||||
Our SVG static synchronous compensator can be customized according to the requirement of customers.
Feature & benefits
1. Our equipment has two mode of operation, manual control or electric operation.

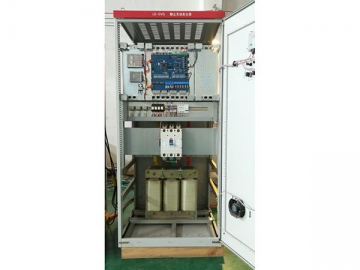

2. The compensator is installed on the ground and connection mode adopts fixed joint.

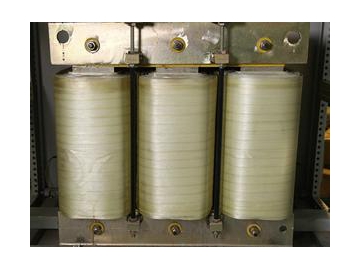

3. The static synchronous compensator is equipped with filter capacitor and filter electrical reactor.
4. Our equipment possesses over-current protection, over-voltage protection, low voltage protection, three-phase imbalance protection and other functions.
5. The capacitor can choose manual switching or automatic switching and switching actuator adopts contactor switch or combination switch.
6. The surface of metal components is galvanized or treated with electrostatic epoxy powder, which has strong corrosion resistance.
