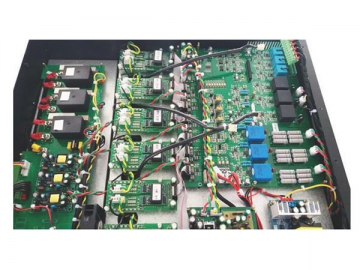

SVG Static Synchronous Compensator Module
Request a Quote
Application
SVG static synchronous compensator is commonly applied to low voltage distribution systems, which is featured as low power factor, large harmonic current and unsteady load. This compensation equipment can eliminate harmonics and realize static reactive compensation, which has a widespread use in frequency conversion equipment, soft starter, uninterruptible power supply and other electrical equipment with large harmonic current and reactive load.
| Model | |||
| Rated current | 50A | 150A | 200A |
| voltage | 400V | ||
| External dimension | 510*595*280 | ||
| Installation note | Wall type | Drawer type | |
| Wiring mode | three phase three wire | ||
| Rated frequency | 50 x (1±2%) Hz, 60 x (1±2%) Hz | ||
| Compensation way | Single phase, three phase three wire(3L), | ||
| Compensation degree | In the range of equipment output capacity, to achieve the set requirements | ||
| Reactive power compensation | 0.98≦PF< 1 | ||
| Compensation way | Reactive compensation, Harmonic compensation | ||
| Response time | < 1ms | ||
| Overload protection | Automatic limit to rated current output | ||
| Overall power consumption | < 3% | ||
| Noisy | < 65dB(A) | ||
| Working temperature | -25℃～45℃ | ||
| Storage temperature | -20℃～65℃ | ||
| Relative humidity | < 90%(25℃) | ||
| IP grade | Ip20 | ||
| Rated frequency | 50 x (1±2%) Hz, 60 x (1±2%) Hz | ||
The SVG static synchronous compensator module can be customized according to the requirement of customers.
