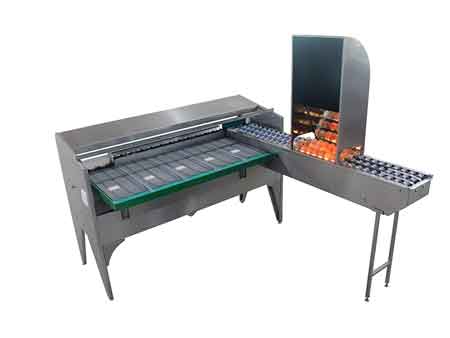

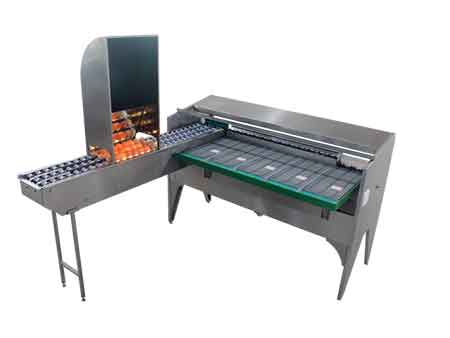

102B Egg Grader (5,400 EGGS/HOUR)
The ZENYER 102B egg grader is made of stainless steel. This machine grades eggs into 5 sizes, with an accuracy of within ±1 gram and has the capacity of 5,400 eggs/hour. It can also be attached to a to form an egg processing line.

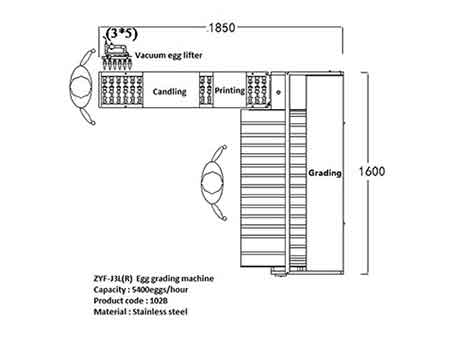

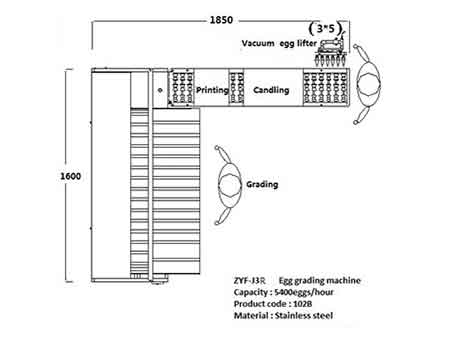

ZENYER provides different egg grader models with egg feeding unit on either left or right side.
| Commodity | Egg grading machine |
| Product code | 102B |
| Type | ZYF-J3-L(R) |
| Capacity | 5,400 eggs/hour |
| Material | Stainless steel |
| Precision | ±1 gram |
| Grade* | 5 |
| Power* | 227W |
| Voltage* | 220V, 50HZ, Single phase |
| Dimension (L*W*H) | 1.85 *1.6 * 1.8 M |
| Net weight* | 220KG |
| Gross weight* | 300KG |
| Function | Egg grading & candling |
- Egg loading
- Candling
- Egg printing (Optional)
- Grading
- Manual collection table

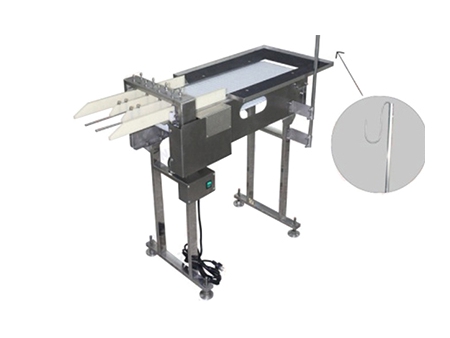

-Place eggs on the feeding unit manually.

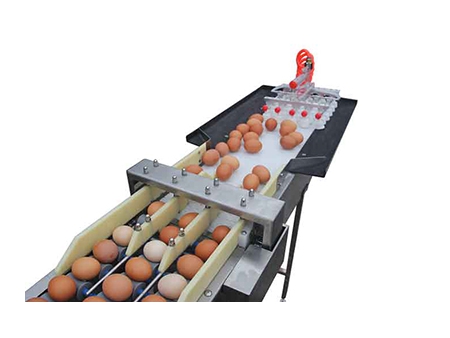

-Or connect ZENYER and use to load 30 eggs on the accumulator each time. Through the accumulator, the eggs are divided into 3 rows and transferred into the feeding unit.

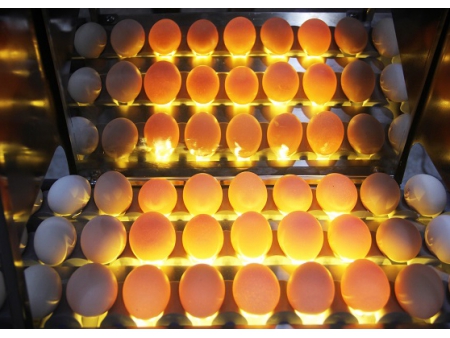

Eggs are transported to the candling unit through the roller of feeding unit. You can check for any leaking, dirty, cracked eggs through LED light by eyes, and manually take them out. 102B egg grader is also equipped with a stainless-steel candling cover and a mirror for better candling results.

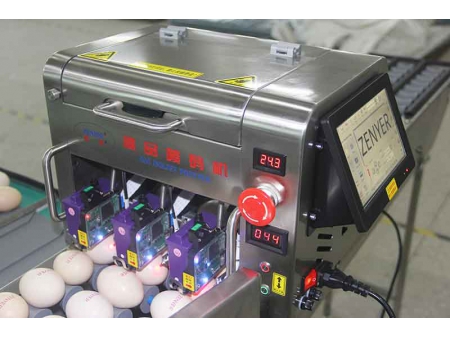

(3-print head) is an optional attachment to print the company name and logo, date and Julian date, etc. on eggs.

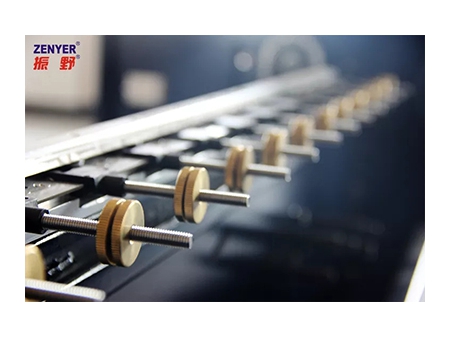

Eggs are weighed and graded into 5 grades.

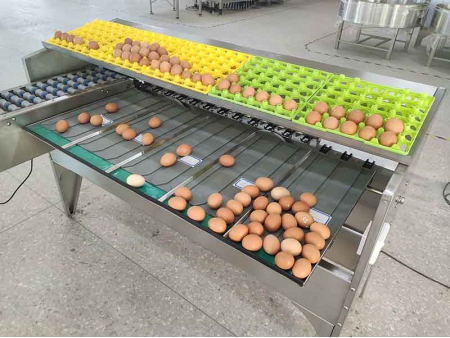

Graded eggs will roll onto the corresponding collection table, you can collect the eggs from the table and pack them into egg cartons/trays manually.
