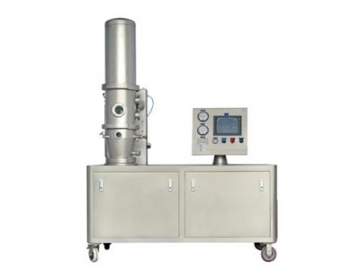

Fluid Bed Dryer
Request a Quote
DPL Series
This fluid bed dryer is capable of accomplishing processes of drying, granulation and spray coating for powders, granules and pellets.
Technical Specifications
| Item | | | |
| Material bowl capacity | Top spray (L) | 9 | 18.5 |
| Bottom spray (L) | 5 | 10 | |
| Side spray (L) | 7.5 | 9 | |
| Output | Top spray (Kg/batch) | 0.5-3 | 1.5-5 |
| Bottom spray ( Kg/batch ) | 0.25-2 | 0.5-3 | |
| Side spray (Kg/batch) | 0.5-2 | 1-2.5 | |
| Compressed air | Pressure (Mpa) | 0.4-0.6 | 0.4-0.6 |
| Consumption (m³/min) | 0.4 | 0.5 | |
| Fan power (Kw) | 4 | 5.5 | |
| Electric heating power (Kw) | 4.5 | 12 | |
| Dimension | Length (mm) | 1800 | 2250 |
| Width (mm) | 860 | 1050 | |
| Height (mm) | 2385 | 2850 | |
| Diameter (mm) | 300 | 400 | |
Features
- Modular design, outfitted with top-spray, bottom-spray and side-spray systems to execute drying, granulation and coating processes;
- Compact structure, fast disassembly for easy cleaning without dead corner, meeting the requirements of cGMP production standards;
- Accurate temperature control with low fluctuation;
- Two filtering chambers allow the bag shaking to be alternated between these two, thus guaranteeing the continuous fluidization process;
- Automatic PLC control system with a graphical user interface assists technician to easily operate and all the operations will be implemented in accordance with set parameters, the process data can be logged and printed for analysis;
- Specially designed air distribution plate provides even distribution of airflow and better fluidization performance, resulting a stable and reproducible quality of the final products;
