The wrap-around labeling machine is equipped with two labeling heads and is capable of applying single labels, double labels, or bottleneck labels on products. The distance of two labels can be flexibly adjusted. Its maximum production speed is 80 pcs/min.
Applications
  • Applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc.
  • Applicable products: products with round surfaces and small conical surfaces
  • Applicable industries: pharmaceutical, cosmetics, electronics, hardware, plastic, etc.
Options
  • A circumferential positioning detection device helps the machine accurately apply labels onto the designated location of circular surfaces.
  • The ribbon printer and industrial inkjet printer can print production date and batch numbers on the label so as to realize the integration of labeling and printing.

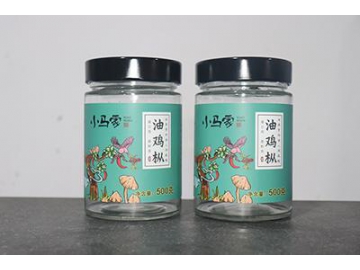

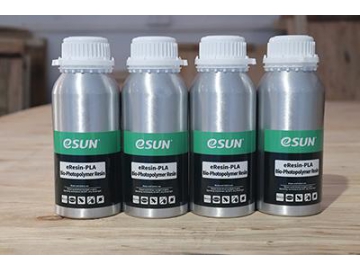

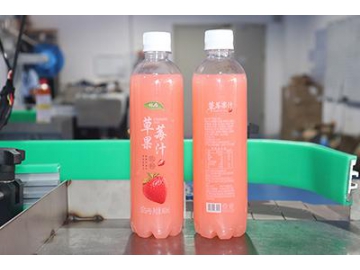

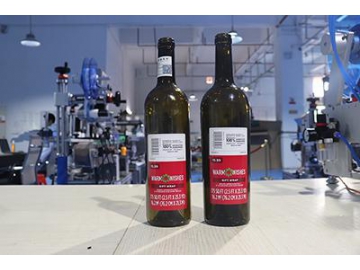

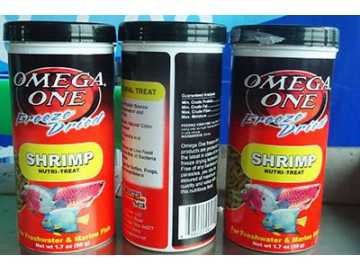

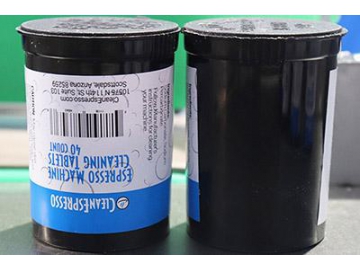

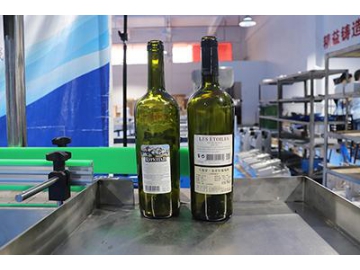

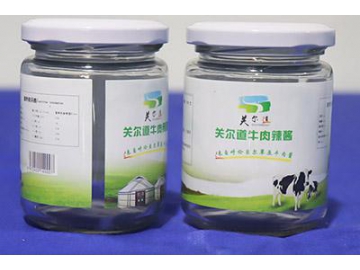

Samples
Specification
Model AS-C06
Label stop accuracy ±1mm
Production speed 40-80 pcs/min
Product diameter φ25mm～φ90mm
Product height 25mm～280mm
Label length 20mm～290mm
Label roll inside diameter Φ76mm
Label roll outside diameter Φ280mm
Dimensions (length x width x height) 1950mm x 1200mm x 1530mm
Weight 185Kg
Air pressure 0.4-0.6Mpa
Details of Wrap-Around Labeling System

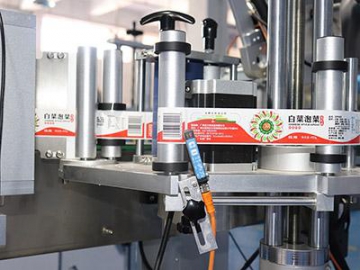

  • Photoelectric sensor:
    The wrap-around labeling system is equipped with a photoelectric sensor made by Sick which features high precision and high reliability.

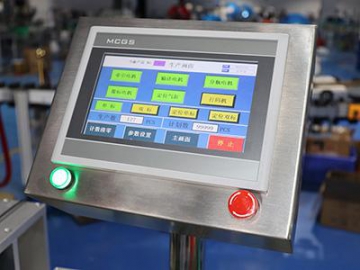

  • Touch screen:
    It is controlled by PLC. The interface is very convenient to use. With just a tap of its touch screen, you can easily access various functions and parameters for your product needs.

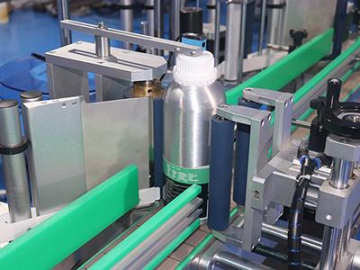

  • Positioning cylinder:
    It is used to locate the workpiece for high precision labeling.

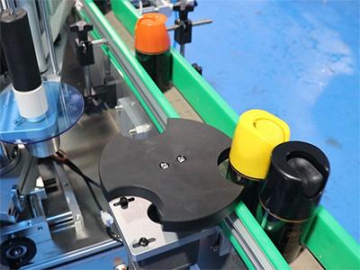

  • Bottle dividing mechanism:
    It controls the speed of the motor to create appropriate gaps among the bottles to ensure each bottle has sufficient time for proper labeling.

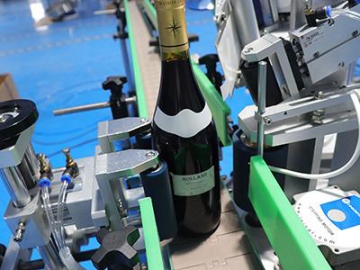

  • Versatile functions:
    The labeling machine is capable of applying a single label, two labels, or bottleneck labels upon round bottles. The distance of two labels can be flexibly adjusted.
Related products
AS-C02 Double Sides Labeling Machine
AS-C02 Double Sides Labeling Machine

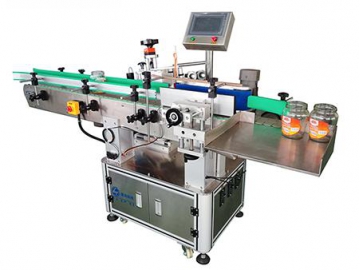

AS-C01 Wrap-around Labeling Machine
