AS-C02 Double Sides Labeling Machine

Request a Quote

View All: http://labelingsolution.com/1-2-as-c02-wrap-around-labelling-machine.html

The wrap-around labeling machine is a high efficiency piece of equipment designed to apply partial or full wrap labels onto round bottles. Its maximum production speed can reach 60 pcs/min.

Applications

Applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc.
Applicable products: round bottles with diameters ranging from 25mm to 100mm
Applicable industries: pharmaceutical, cosmetics, daily chemical, electronics, toy, etc.

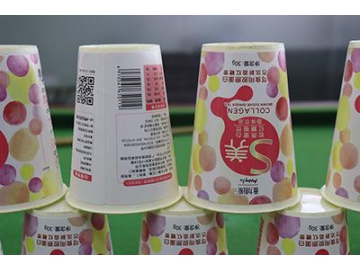

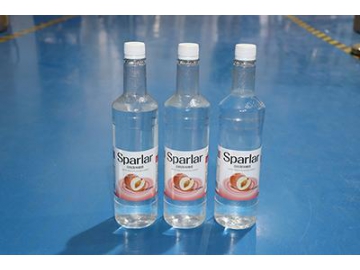

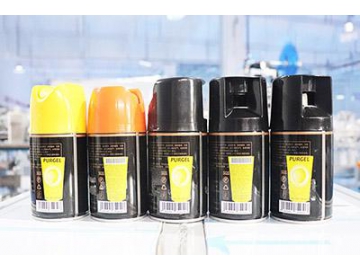

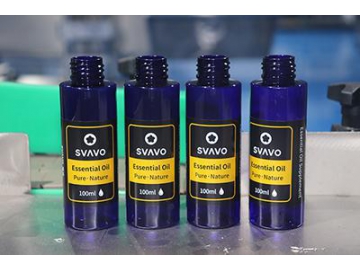

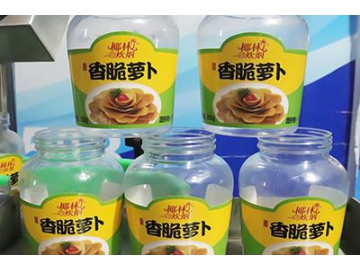

Samples

Specification

Model	AS-C02
Label stop accuracy	±1mm
Production speed	30-60 pcs/min
Product diameter	φ25mm～φ90mm
Product height	25mm～280mm
Label length	20mm～290mm
Label roll inside diameter	Φ76mm
Label roll outside diameter	Φ280mm
Dimensions(length x width x height)	1950mm x 1200mm x 1530mm
Weight	185Kg

Details of Wrap-Around Labeling System

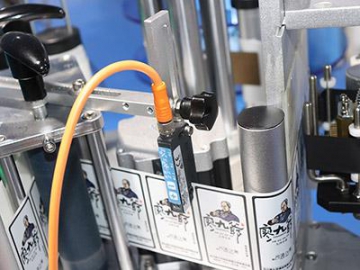

Photoelectric sensor:
High precision and reliable Sick brand photoelectric sensor

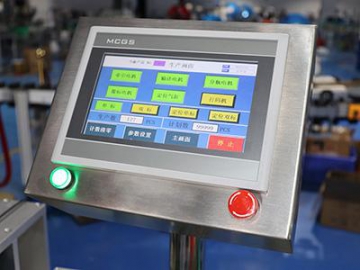

Touch screen:
It is controlled by PLC. The interface is convenient to use. With just a tap of its touch screen, you can easily access various functions and parameters for your product needs.

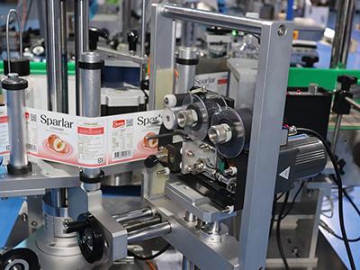

Coding machine:
It can print information such as batch numbers on the labels during the labeling process.
Positioning cylinder:
It is used to locate the workpiece for precision labeling.

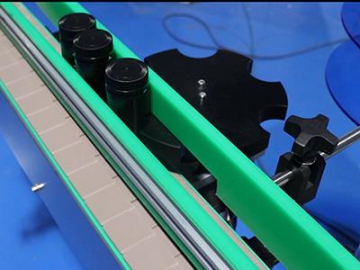

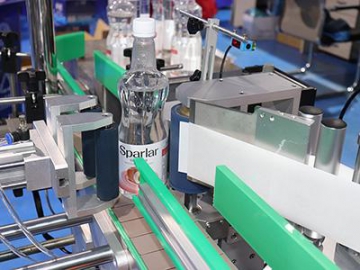

Bottle dividing mechanism:
It controls the speed of the motor to create appropriate gaps among the bottles to ensure each bottle has sufficient labeling time

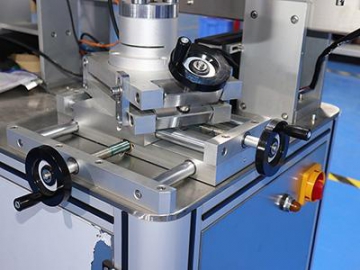

Label adjusting mechanism:
Label position, height, and angle can be adjusted by the label adjusting mechanism. It enables the label to be applied to bottles of different shapes with high accuracy.
