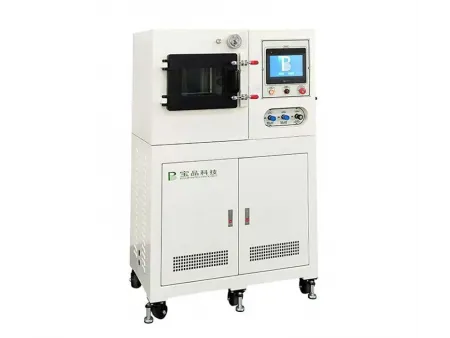

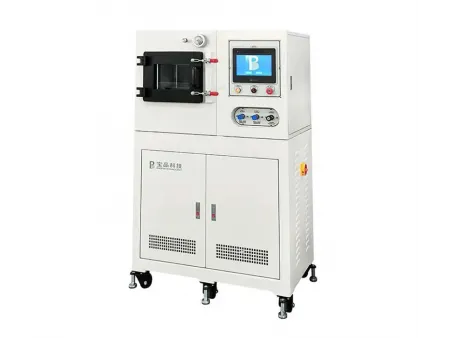

BP-8170-E Laboratory Vacuum Press
Request a Quote
Laboratory platen presses for compression molding of plastic, rubber and composites inside a vacuum chamber
- 20 Ton Capacity (others on request)
- PLC control
- Single set of pressing platens
- Integrated electric heating and water cooling on both upper and lower platens
The laboratory vacuum press is designed with a high vacuum cover, creating a fully vacuumized environment for compressing and molding materials such as rubber, plastics, and composite materials.
By integrating the vacuum system with the heating platens, it effectively removes trapped air and volatile substances, ensuring the formation of strong, durable materials with superior quality.
Reach out today to discover how our laboratory vacuum press can improve your material processing and production efficiency.
Technical Data
- Capacity
20 tons (others on request) - Temperature range
Room temperature to 400℃ - Temperature accuracy
±2℃ - Controller
PLC programmable color touch screen with a man-machine interface operating system. The intuitive vulcanization curve interface allows for dynamic display and monitoring of the mold pressure process, and provides control over all mold pressure circulation. - Pressing platen size
300×300×60mm - Open daylight
150mm - Pressing platens
1 set of pressing platen, integrated electric heating and water cooling on both upper and lower platens - Cooling Method
Tap water cooling. After the heating process is complete, the system automatically switches to the cooling process and operates at full pressure (without opening the mold). (Water connection port supplied by the customer). - Oil Pressure System
The proportional hydraulic flow valve circulation control system offers automatic pressure compensation, pressure maintenance, and delayed oil pump shutdown. It features a dual-speed working mode, utilizing high approach speed for low pressure and low approach speed for high pressure. Multiple exhaust times can be set to ensure that the template pressure reaches saturation. - Dimensions (W×D×H)
950×500×1470mm - Power supply
AC380V, 20A, 3-phase 5-wire (power connection port is provided by user) - Weight
approx. 658kg
