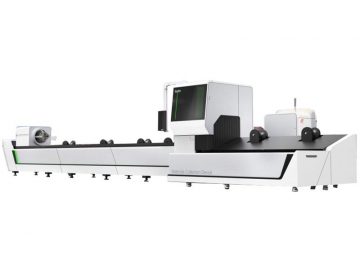

Tube Laser Cutting Machine T230
Fiber Laser Cutter, Fiber Laser Cutter System
The T230 tube laser cutting machine is a cutting machine with a power range of 1,000 to 4,000W, and is used to cut metal tubes with a maximum diameter of 230mm and a maximum length of 650mm to meet most customer requirements.
This tube laser cutting machine is equipped with a self-centering chuck in order to clamp the metal tubes quickly. The clamping range is wide and will adapt to metal tubes with different inner and outer diameters. The self-centering chuck is driven using a claw-type DC motor for a stable and higher speed performance in order to improve the processing efficiency.
This tube laser cutting machine is also equipped with laser heads with an auto focus function, ensuring the laser’s focal length will automatically change according to the metal tube inner and outer diameters, and thus, improve the processing efficiency.
- Shelf
- Fitness Equipment
- Lighting fixture
- Household appliances
- Medical equipment
- Kitchenware
- Car seat
- Handcrafted gift
- Stainless steel
- Alloy steel
- Carbon steel
- Aluminum alloy
- Galvanized steel
- Copper
- Titanium
| Model | T230 | ||
| Effective pipe cutting length | 6500mm | ||
| Max. output power | 4000w/3000w/2000w/1500w/1000w | ||
| Effective pipe cutting diameter | Φ20-230mm | ||
| Effective square tube cutting diameter | □20*20-□160*160mm | ||
| Rectangular tube | Edge length | 20-170mm | |
| Max. outer circle diameter | ≤230mm | ||
| X/Y-axis positioning accuracy | 0.05mm | ||
| X/Y-axis repositioning accuracy | 0.03mm | ||
| X axis maximum speed | 95m/min | ||
| Y axis maximum speed | 70m/min | ||
