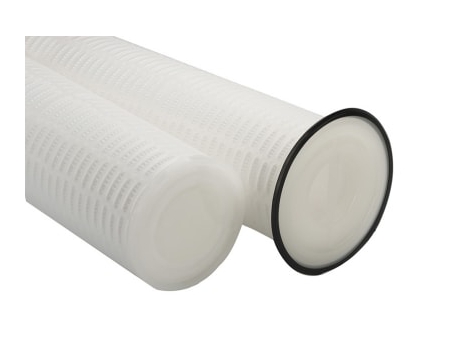

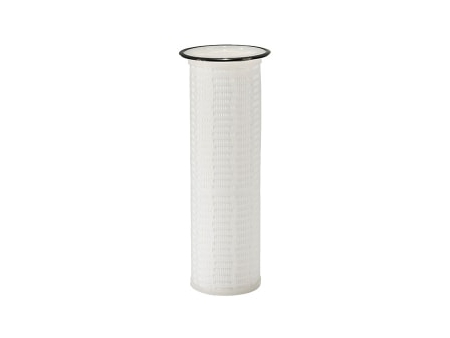

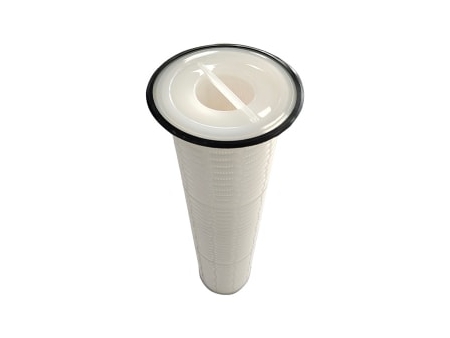

High Flow Filter Cartridge, PLBG Series

Request a Quote

View All: http://filtrationcartridge.com/1-7-high-flow-filter-cartridge.html

Our high flow filter cartridge revolutionizes bag filtration with its pleated structure, delivering an efficient solution that offers over 8 times more filtration area compared to conventional filter bags. This high-performance filter cartridge is designed for high flow applications, providing high filtration efficiency and a longer service life.

This filter cartridge is ingeniously designed to directly replace traditional filter bags in existing bag filtration systems, eliminating the need for any modifications. This design significantly reduces the frequency of filter replacements and lowers overall maintenance costs, making it a cost-effective choice for various industries.

Materials of Construction

Filter Medium	Polypropylene depth structure
Support/Drainage	Polypropylene
Frame/Connection	Glass Fiber Reinforced Polypropylene
O-ring	Ethylene-propylene rubber (EPR), Silicon rubber, Fluoro rubber (FPM/FKM), Nitrile rubber (NBR)

Specifications

Outside Diameter	152.4mm
Length	Size 1 Bag, Size 2 Bag (customizable length)
Micron Rating	1.0, 2.0, 5.0, 10, 20, 40, 70, 90μm
Max. Operating Temperature	82℃
Max. differential pressure	3.5 bar/21℃ (inside to outside flow)
Recommended change-out differential pressure	0.1Mpa/21℃ (inside to outside flow)

Applications

General Applications: Prefiltration for reverse osmosis systems, purification of various process water.
Industrial Use: Filtration for various process fluids, process water, condensate water, cooling water, wastewater treatment, and more.
Filtration for power plant condensate water, feedwater, and cooling water.
Filtration of various solvents, and other chemical agents in the petrochemical industry.
Filtration of various solvents, chilled water, saltwater, and other chemical agents in the petrochemical industry.
RO protection, pretreatment for seawater desalination, and filtration of various process water.
