Label Weaving Machine
Request a Quote

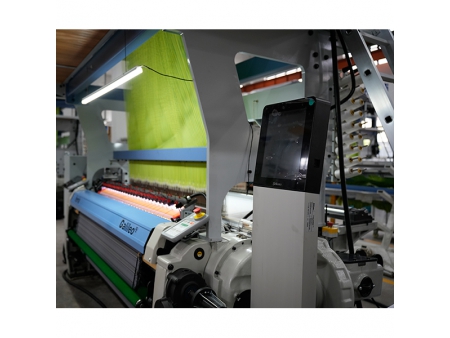

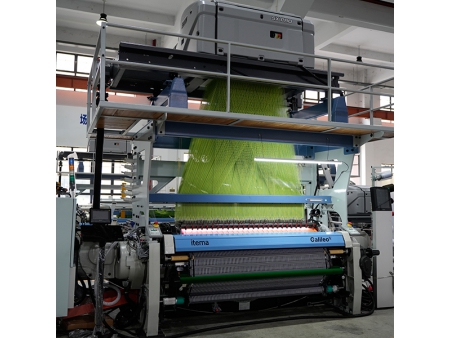

Credit Ocean’s label weaving machine (Model: JULIBAO-RC2014) is designed for woven garment label production. It supports various label widths and spacing configurations, making it suitable for high-volume, consistent manufacturing of garment labels.
Features
- The shuttle is made of wear-resistant wood materials with optimized manufacturing processes, improving durability and service life; and the additional multi-spring structure ensures stable weft tension.
- Equipped with a stainless steel shuttle box that resists deformation under harsh conditions, along with wear-resistant guide rails to extend service life and improve product quality.
- Optional red fiber shuttle box material helps reduce blackening issues in white taffeta and satin labels, while providing enhanced durability (depending on actual configuration).
Parameters
| Model | RC2014 |
| Dimension | W3100 × L2600 × H3650 mm |
| Weight | 2500–2600 kg |
| Power supply | 3–3.7 kW |
| Decks | 3 decks (standard), optional 4 decks |
| Color | 4 colors (depending on configuration) |
| Hooks | 200–1408 hooks (depending on configuration) |
| Label width | NO. of spaces |
| 1.2 cm | 56 (4 decks) |
| 1.2 cm, 2 cm | 43 (3 decks) |
| 2.5 cm | 40 (3 decks) |
| 3.2 cm | 38 (3 decks) |
| 3.5 cm, 4 cm | 31 (3 decks) |
| 4.5 cm, 5 cm | 29 (3 decks) |
